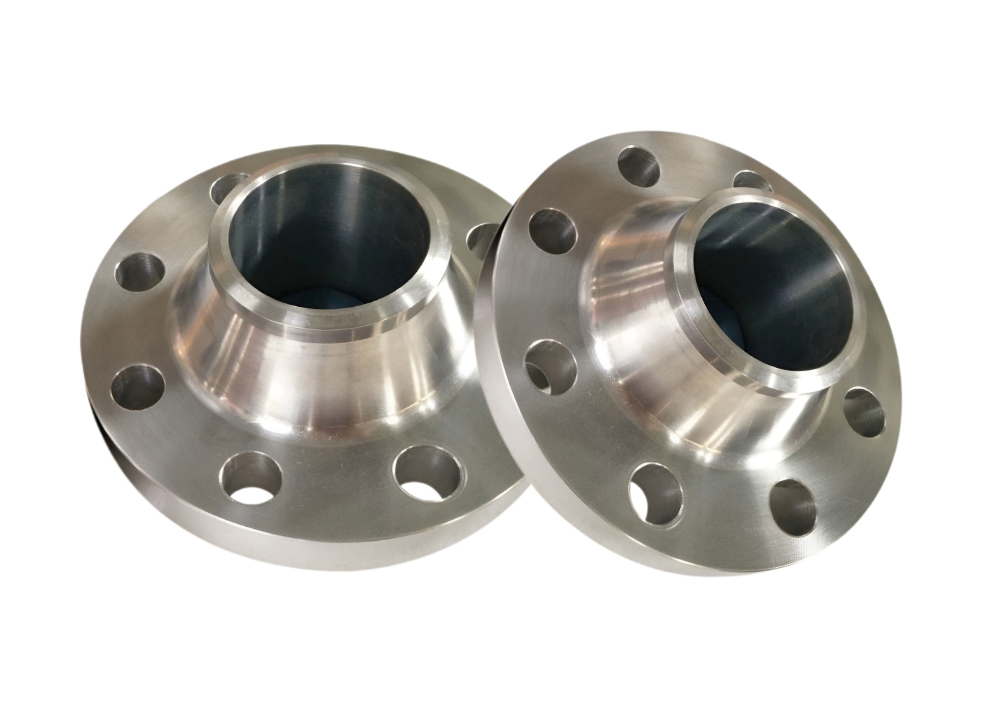

Titanium Weld Neck Flange (WN Flange) is a key connection component used in piping systems under high pressure, high temperature, or harsh conditions. It features with a long neck transition section and is connected to the pipe by butt welding, offering excellent strength and sealing performance.
Long neck titanium flange features with neck is relatively long, and is connected to the pipeline using a butt weld interface, with a fully penetrating weld seam that has high strength. The gradual change in neck thickness effectively disperses stress and reduces stress concentration at the pipe and flange connection. There are five types of sealing surface, including RF,MFM,TG,FF,RJ is often preferred for high-pressure conditions.
Titanium flange with weld neck Flange has excellent anti-sag performance and can successfully cope with pressure fluctuations, load cycles and impacts, they are versatile and suitable for a wide range of applications involving extreme temperatures (high and low) as well as high-pressure environments. In terms of durability, the design of Titanium Weld Neck Flange is flexible and long-lasting, offering a longer expected lifespan than other types of flanges because they are less likely to deform under high temperatures and pressure.
|
Standard |
ASME,JIS,DIN,GB,GOST |
|
Material Designation |
TA1,TA2,TA9,TA10,GR1,GR2,GR7,GR12,GR16,N5,N6,N7 etc |
|
Size |
DN10-DN2000 |
|
OEM/ODM |
Available |
|
Pressure |
PN10,PN16,PN25,PN40,PN63,PN100,PN160, |
|
Technics |
Forged |
|
Sealing Surface |
RF,MFM,TG,FF,RJ |
|
Type |
Weld Neck Flange |
|
Packaging |
Export standard wooden case, or can be customized |
|
Application |
Petroleum, chemical, shipbuilding, pharmaceutical, metallurgy, machinery, stamping elbow, food and other |
PN 16(mm)
|
Diameter Nominal |
Outer diameter of steel pipe flange weld end Outer diameter |
Connection size |
Flange thickness |
Flange neck |
Flange height |
|||||||||
|
Flange outside diameter |
Diameter of center circle of bolt hole |
Bolt hole |
Number of bolt holes |
bolt |
N |
s≥ |
H1 |
R |
||||||
|
A |
B |
A |
B |
|||||||||||
|
10 |
17.2 |
14 |
90 |
60 |
14 |
4 |
M12 |
16 |
28 |
28 |
1.8 |
6 |
4 |
35 |
|
15 |
21.3 |
18 |
95 |
65 |
14 |
4 |
M12 |
16 |
32 |
32 |
2.0 |
6 |
4 |
38 |
|
20 |
26.9 |
25 |
105 |
75 |
14 |
4 |
M12 |
18 |
40 |
40 |
2.3 |
6 |
4 |
40 |
|
25 |
33.7 |
32 |
115 |
85 |
14 |
4 |
M12 |
18 |
46 |
46 |
2.6 |
6 |
4 |
40 |
|
32 |
42.4 |
38 |
140 |
100 |
18 |
4 |
M16 |
18 |
56 |
56 |
2.6 |
6 |
6 |
42 |
|
40 |
48.3 |
45 |
150 |
110 |
18 |
4 |
M16 |
18 |
64 |
64 |
2.6 |
7 |
6 |
45 |
|
50 |
60.3 |
57 |
165 |
125 |
18 |
4 |
M16 |
18 |
74 |
74 |
2.9 |
8 |
5 |
45 |
|
65 |
76.1 |
65 |
185 |
145 |
18 |
8 |
M16 |
18 |
92 |
92 |
2.9 |
10 |
6 |
45 |
|
80 |
88.9 |
89 |
200 |
160 |
18 |
8 |
M16 |
20 |
105 |
105 |
3.2 |
10 |
6 |
50 |
|
100 |
114.3 |
108 |
220 |
180 |
18 |
8 |
M16 |
20 |
131 |
131 |
3.6 |
12 |
8 |
52 |
|
125 |
139.7 |
133 |
250 |
210 |
18 |
8 |
M16 |
22 |
156 |
156 |
4.0 |
12 |
8 |
55 |
|
150 |
168.3 |
159 |
285 |
240 |
22 |
8 |
M20 |
22 |
184 |
184 |
4.5 |
12 |
10 |
55 |
|
200 |
219.1 |
219 |
340 |
295 |
22 |
12 |
M20 |
24 |
235 |
235 |
6.3 |
16 |
10 |
62 |
|
250 |
273 |
273 |
405 |
355 |
26 |
12 |
M24 |
26 |
292 |
292 |
6.3 |
16 |
12 |
70 |
|
300 |
323.9 |
325 |
460 |
410 |
26 |
12 |
M24 |
28 |
344 |
344 |
7.1 |
16 |
12 |
78 |
|
350 |
355.6 |
377 |
520 |
470 |
26 |
16 |
M27 |
30 |
390 |
410 |
8.0 |
16 |
12 |
82 |
|
400 |
406.4 |
426 |
580 |
825 |
30 |
16 |
M27 |
32 |
445 |
464 |
8.0 |
16 |
12 |
85 |
|
450 |
457 |
480 |
640 |
585 |
30 |
20 |
M27 |
40 |
490 |
512 |
8.0 |
16 |
12 |
87 |
|
500 |
508 |
530 |
715 |
650 |
33 |
20 |
M30 |
44 |
548 |
578 |
8.0 |
16 |
12 |
90 |
|
600 |
610 |
630 |
840 |
770 |
36 |
20 |
M33 |
54 |
652 |
670 |
8.8 |
18 |
12 |
95 |
|
700 |
711 |
720 |
910 |
840 |
36 |
24 |
M33 |
36 |
755 |
759 |
8.8 |
18 |
12 |
100 |
|
800 |
813 |
820 |
1025 |
950 |
39 |
24 |
M36×3 |
38 |
855 |
855 |
10.0 |
20 |
12 |
105 |
|
900 |
914 |
920 |
1125 |
1050 |
39 |
28 |
M36×3 |
40 |
955 |
954 |
10.0 |
20 |
12 |
110 |
|
1000 |
1016 |
1020 |
1255 |
1170 |
42 |
28 |
M39×3 |
42 |
1058 |
1060 |
10.0 |
22 |
16 |
120 |
|
1200 |
1219 |
1220 |
1485 |
1390 |
48 |
32 |
M45×3 |
48 |
1262 |
1260 |
12.5 |
30 |
16 |
130 |
|
1400 |
1422 |
1420 |
1685 |
1590 |
48 |
36 |
M45×3 |
52 |
1465 |
1465 |
14.2 |
30 |
16 |
145 |
|
1600 |
1626 |
1620 |
1930 |
1820 |
56 |
40 |
M52×4 |
58 |
1668 |
1668 |
16 |
35 |
16 |
160 |
|
1800 |
1829 |
1820 |
2130 |
2020 |
56 |
44 |
M52×4 |
62 |
1870 |
1870 |
17.5 |
35 |
16 |
170 |
|
2000 |
2032 |
2020 |
2345 |
2230 |
62 |
48 |
M56×4 |
66 |
2072 |
2072 |
20 |
40 |
16 |
180 |
Titanium flanges, with their high strength-to-weight ratio, high-temperature resistance, corrosion resistance and
excellent fatigue performance,have become core components in six high-end sectors: Aerospace,Petrochemicals,
Marine Engineering, New Energy, Electronics and Environmental Protection.
