Titanium Alloy Machining Tool Wear Mechanisms and Process Control Strategies

In the field of metal cutting, titanium alloys have long been regarded as one of the most difficult materials to machine. Their relative machinability rating is only 20‑25% that of free‑cutting steel – meaning that under identical cutting conditions, tool life when machining titanium is only one‑quarter to one‑fifth of that when machining steel.

This machining difficulty does not stem primarily from high hardness (titanium alloys typically have hardness equivalent to only 30‑40 HRC), but rather from the unique combination of their physical and mechanical properties.

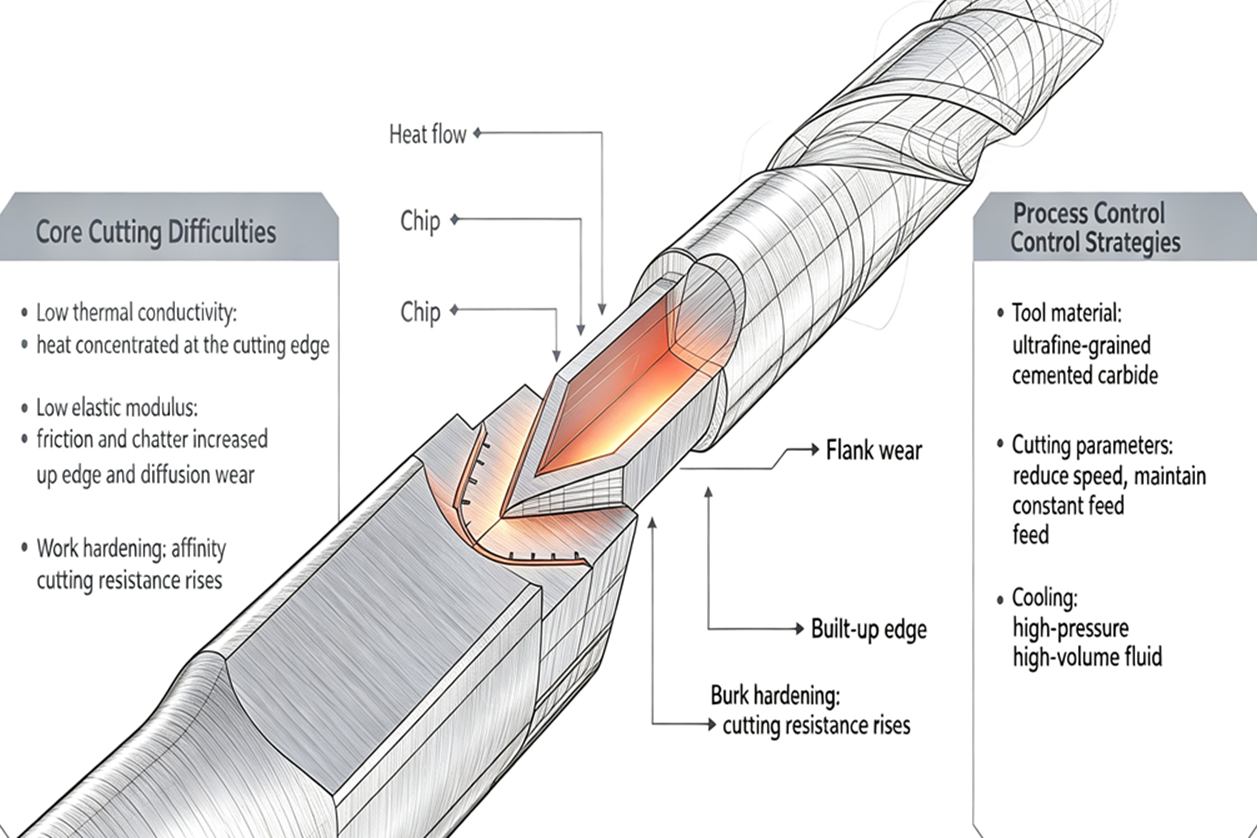

Core Difficulties in Cutting Titanium Alloys

1. Extremely low thermal conductivity causing heat concentration at the cutting edge

The thermal conductivity of titanium alloys is approximately 6.7‑11.8 W/(m·K) – only about 1/7 that of steel (≈45 W/(m·K)) and 1/20‑1/30 that of aluminium alloys (≈237 W/(m·K)). During cutting, about 80% of the heat generated is concentrated at the cutting edge, rather than being carried away by the chip as in steel cutting. The cutting edge temperature can reach 1000‑1200°C. At such temperatures, the hardness of cemented carbide tools drops significantly, and the binder phase (cobalt) softens, accelerating plastic deformation and diffusion wear.

2. Low elastic modulus causing friction and vibration issues

The elastic modulus of TC4 titanium alloy is about 110 GPa – roughly half that of steel (≈210 GPa). This low stiffness means that the workpiece deforms elastically under cutting force. After the tool passes, the workpiece surface springs back, creating severe friction between the flank face and the workpiece surface – flank wear rates can be several times higher than when cutting steel. Additionally, low stiffness tends to induce chatter, compromising machining accuracy and surface quality.

3. High‑temperature chemical affinity leading to built‑up edge and diffusion wear

Titanium exhibits strong chemical reactivity at elevated temperatures. When the cutting temperature exceeds 800°C, titanium reacts chemically with components of conventional tool materials – such as WC, Co, and TiC – forming an adhered titanium layer (built‑up edge, BUE) on the tool face. When this adhered layer is torn away during subsequent cutting, it takes tool material with it – this “adhesion‑tear” cycle is a primary failure mode in titanium cutting. Studies indicate that titanium‑containing coatings (e.g., TiAlN) exhibit even stronger chemical affinity with titanium alloys at high temperatures, leading to more severe adhesive wear.

4. Pronounced work‑hardening tendency

Titanium alloys have limited plastic deformation capacity. During cutting, the surface layer undergoes severe cold work hardening, with a hardened layer depth reaching 0.1‑0.3 mm and surface hardness increasing by 20‑30% above the substrate. When the next cutting pass is made, the tool is effectively cutting through a work‑hardened layer – further increasing cutting forces and tool wear.

Process Optimisation Strategies

1. Tool material selection

The core principle for titanium alloy cutting is “avoid titanium‑containing coatings”. Ultrafine‑grained cemented carbides (grain size ≤ 0.5 μm) are the mainstream choice for roughing and general finishing. YG‑grade carbides (ISO K‑grade) are particularly suitable for machining Ti‑6Al‑4V, with conventional cutting speeds in the range of 60‑120 m/min – offering tool life up to 5 times that of conventional high‑speed steel tools.

PCD tools react with titanium at high temperatures (carburisation), with edge erosion rates reaching 0.15 mm/h and tool life dropping by 70% – they are generally not recommended. CBN tools are highly sensitive to cutting parameters – titanium chip adhesion tends to form at the entry and exit points, causing a sudden 30% increase in cutting force. For finishing and complex contour machining, PVD‑coated carbides (with coatings such as TiB₂, CrN, or DLC) can effectively reduce adhesion, provided that titanium‑based coatings are avoided.

2. Cutting parameter selection

Cutting speed is the most sensitive factor affecting tool life. For rough machining of Ti‑6Al‑4V, the recommended cutting speed range is 30‑60 m/min (with cemented carbide tools), while finishing can be increased to 80‑150 m/min. Feed rate should be maintained in the range of 0.1‑0.25 mm/r, with depth of cut controlled between 1‑3 mm. The “constant feed” principle is critical – any dwell or idle rubbing at the cutting edge causes local heat build‑up and accelerated work hardening.

3. Cooling and lubrication control

High‑pressure, high‑volume cutting fluid is a standard requirement for titanium machining. Recommended pressure: ≥ 7 MPa, flow rate: ≥ 30 L/min – ensuring that the fluid penetrates the high‑temperature boundary layer and reaches the cutting edge directly. Oil‑based cutting fluids offer better lubrication than water‑based ones, with temperature reductions up to 40°C. For more demanding applications, liquid nitrogen (–180°C) or liquid CO₂ (–76°C) can be used as cryogenic coolants to effectively “freeze” the heat in the cutting zone. Key caution: avoid cutting fluids containing chlorine or sulphur extreme‑pressure additives – at high temperatures, they may release corrosive gases or be absorbed by titanium, causing hydrogen embrittlement.

Machining titanium alloys is essentially a battle of thermal management. Low thermal conductivity, low elastic modulus, and high chemical affinity – these three factors form a mutually reinforcing “dilemma”: heat is difficult to dissipate, which exacerbates diffusion and adhesion; and adhesion further increases heat generation. Successful titanium machining relies on controlling the cutting edge temperature within an acceptable range through proper tool material selection, cutting parameter matching, and cooling strategy optimisation. Machine tool rigidity and process system stability are also non‑negligible factors. As high‑pressure cooling, minimum quantity lubrication (MQL), and cryogenic machining technologies mature, the efficiency boundary of titanium alloy cutting continues to expand.
