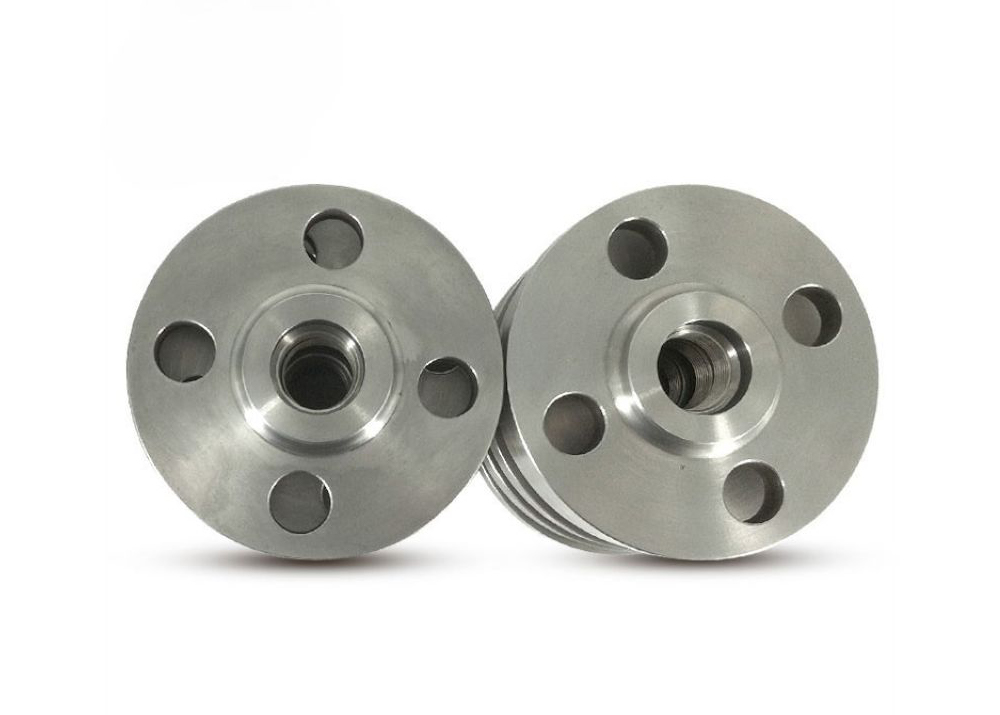

Titanium threaded flanges, also called titanium screwed flanges, include threads inside the flange bore which connects to the external threads on a pipe without welding. Threaded pipe flanges typically have a RF and FF sealing face. Threaded connections include NPT (National Pipe Thread) or BSPT (British Standard Pipe Taper).
Threaded titanium flanges are commonly used for pipe connection. Its main material is industrial pure titanium or titanium alloy. The pressure rating packages include PN6,PN10,PN16,PN25,PN40. Among them, the common specifications of PN25 range from DN10 to DN150.
Threaded Pipe titanium flange available with standard size as well as non-standard customization accordingly to customer's requirements or drawings. Our titanium flanges are manufactured critically to the exact standard, including ASME,JIS,DIN,GB,GOST international standards to meet different requirements from the customers worldwide.
|
Standard |
ASME,JIS,DIN,GB,GOST |
|
Material Designation |
TA1,TA2,TA9,TA10,GR1,GR2,GR7,GR12,GR16,N5,N6,N7 etc. |
|
Size |
DN10-DN150 |
|
OEM/ODM |
Available |
|
Pressure |
PN6,PN10,PN16,PN25,PN40, |
|
Technics |
Forged |
|
Sealing Surface |
RF,FF |
|
Type |
Threaded flange |
|
Packaging |
Export standard wooden case, or can be customized |
|
Application |
Petroleum, chemical, shipbuilding, pharmaceutical, metallurgy, machinery, stamping elbow, food and other |
PN 25(mm)
|
Diameter Nominal |
Outer diameter of steel pipe |
Connection size |
Flange thickness |
Flange neck |
Flange height |
Pipe thread specification |
|||||
|
Flange outside diameter |
Diameter of center circle of bolt hole |
Bolt hole diameter |
Number of bolt holes |
bolt |
|||||||
|
N |
R |
||||||||||
|
10 |
17.2 |
90 |
60 |
14 |
4 |
M12 |
16 |
30 |
4 |
22 |
3/8 |
|
15 |
21.3 |
95 |
65 |
14 |
4 |
M12 |
16 |
35 |
4 |
22 |
1/2 |
|
20 |
26.9 |
105 |
75 |
14 |
4 |
M12 |
18 |
45 |
4 |
26 |
3/4 |
|
25 |
33.7 |
115 |
85 |
14 |
4 |
M12 |
18 |
52 |
4 |
28 |
1 |
|
32 |
42.4 |
140 |
100 |
18 |
4 |
M16 |
18 |
60 |
6 |
30 |
1-1/4 |
|
40 |
48.3 |
150 |
110 |
18 |
4 |
M16 |
18 |
70 |
6 |
32 |
1-1/2 |
|
50 |
60.3 |
165 |
125 |
18 |
4 |
M16 |
20 |
84 |
6 |
34 |
2 |
|
65 |
76.1 |
185 |
145 |
18 |
8 |
M16 |
22 |
104 |
6 |
38 |
2-1/2 |
|
80 |
88.9 |
200 |
160 |
18 |
8 |
M16 |
24 |
118 |
8 |
40 |
3 |
|
100 |
114.3 |
235 |
190 |
22 |
8 |
M20 |
24 |
145 |
8 |
44 |
4 |
|
125 |
169.7 |
270 |
220 |
26 |
8 |
M24 |
26 |
170 |
8 |
48 |
5 |
|
150 |
168.3 |
300 |
250 |
26 |
8 |
M24 |
28 |
200 |
10 |
52 |
6 |
Titanium flanges, with their high strength-to-weight ratio, high-temperature resistance, corrosion resistance and
excellent fatigue performance,have become core components in six high-end sectors: Aerospace,Petrochemicals,
Marine Engineering, New Energy, Electronics and Environmental Protection.
