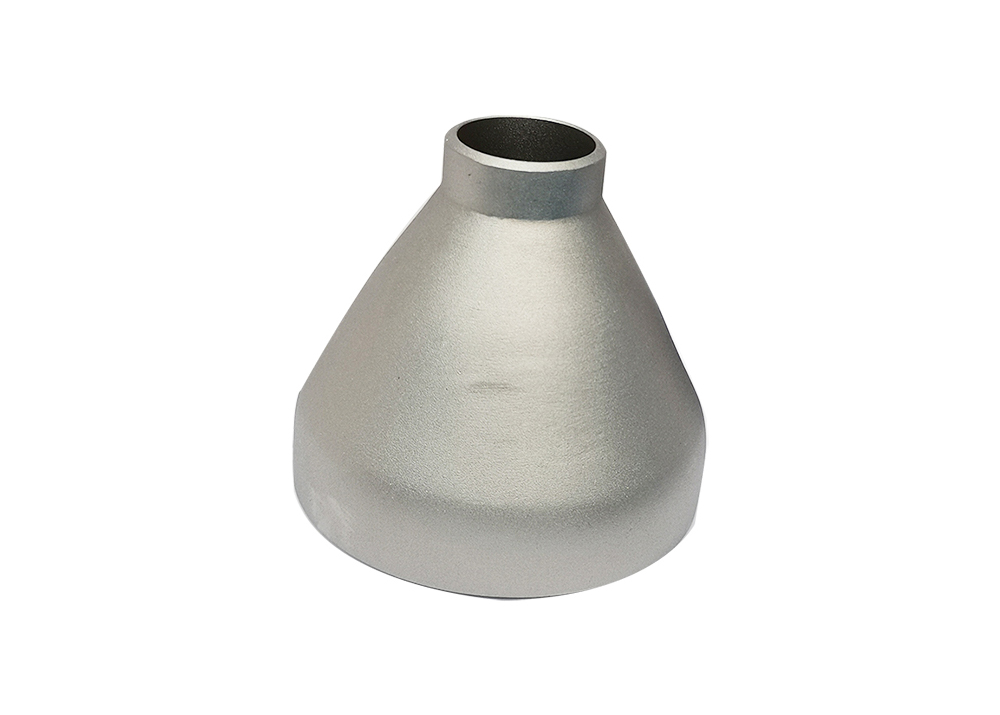

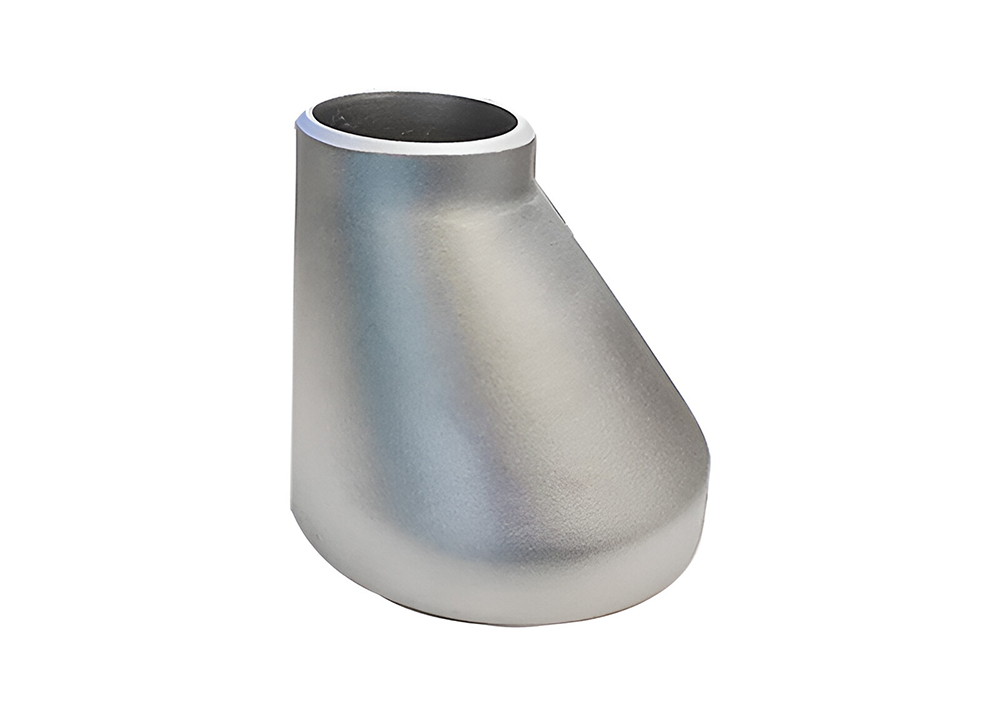

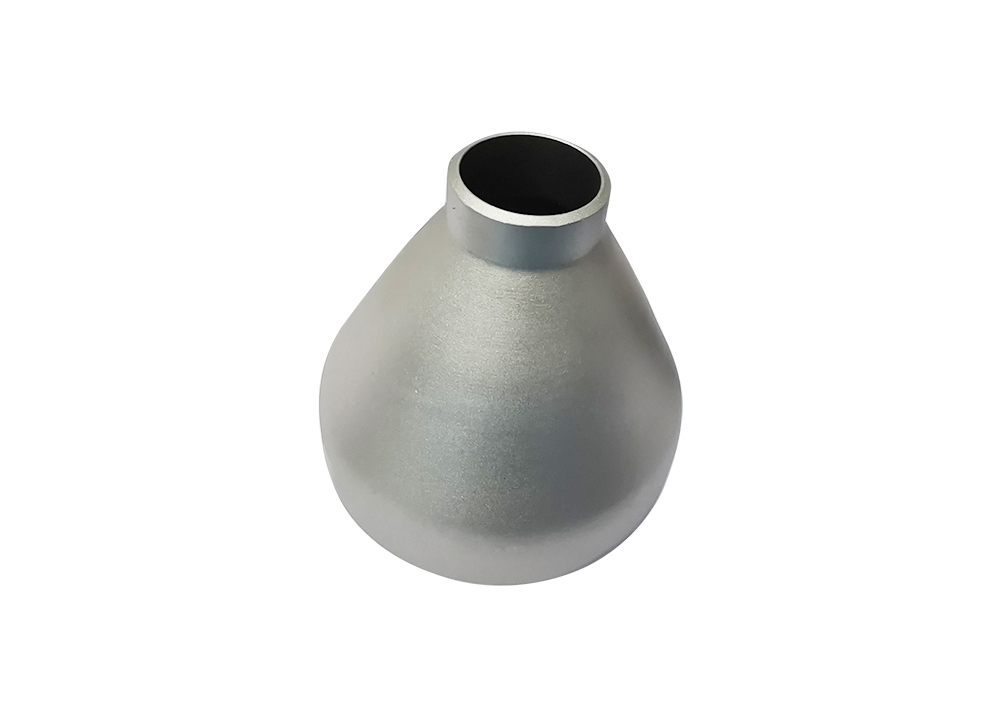

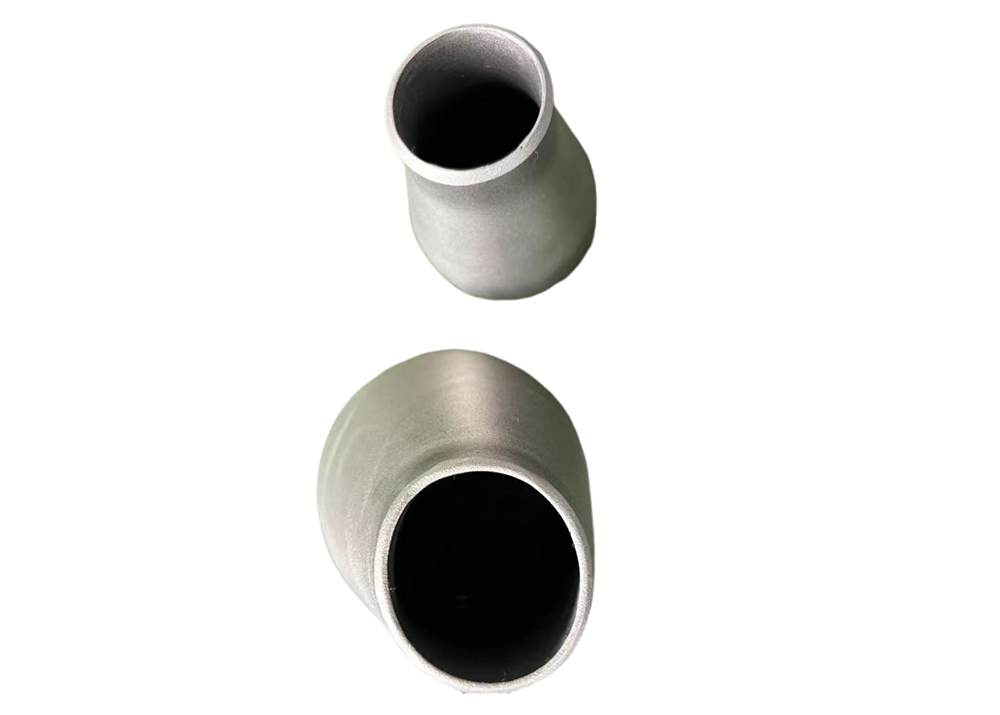

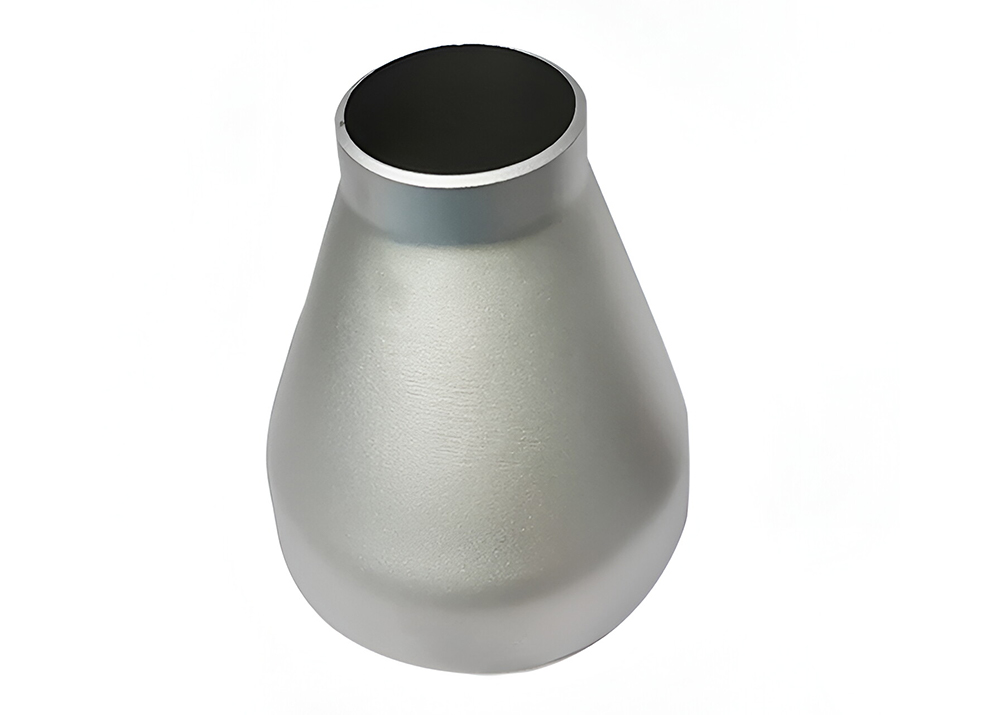

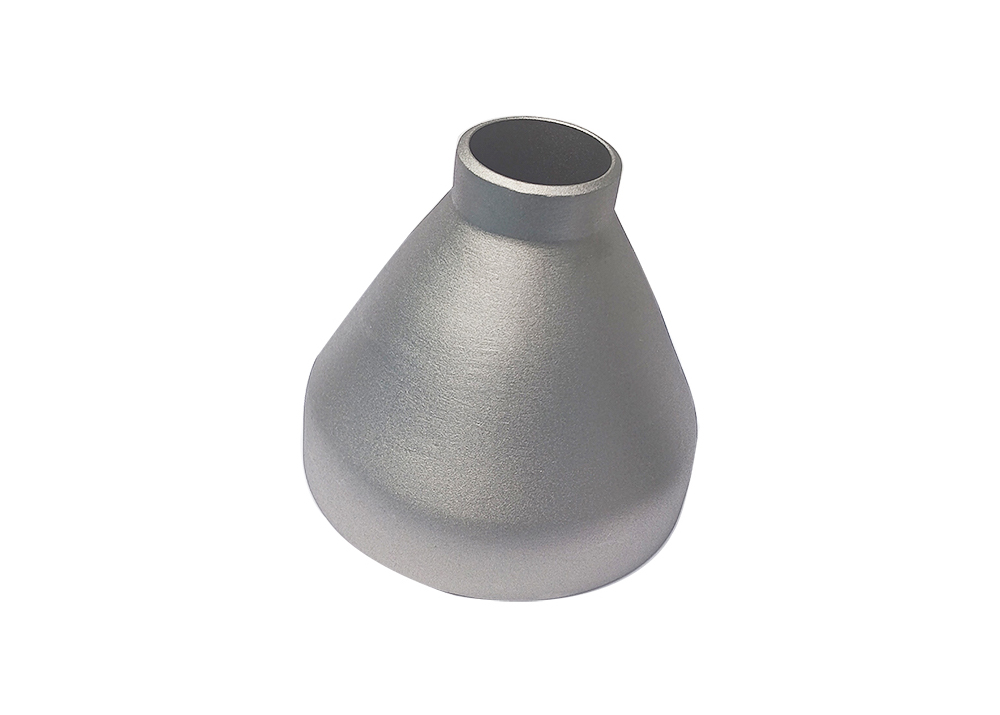

Titanium Reducers are a kind of pipe fittings used for pipe diameter reduction, also known as big and small heads, Titanium reducers have concentric reducers and eccentric reducers, used for the connection of two different pipe diameters.
Titanium pipe reducer has a wide range of applications due to their high strength, low weight ratio and excellent corrosion resistance. Titanium reducers are widely used in aerospace, automotive,chemical plants, power generation, oil and gas extraction, sports and other high-level industries in major sectors.
Titanium pipe fitting reducers specifications cover DN20X15-DN1200 X1000, and we also support non-standard customization accordingly to customer’s requirements or drawings. Our titanium tees are manufactured critically to the exact standard, including ASME B16.9, GB/T 12459, ASTM B363.international standards to meet different requirements from the customers worldwide.
|
Material Designation |
TA1/TA2/TA9/TA10/GR1/GR2/GR7/GR12/N5/N6 etc |
|
Standard |
ASME B16.9, GB/T 12459, ASTM B363 |
|
Size |
DN20×15-DN1200×1000 |
|
OEM/ODM |
Available |
|
Titanium Surface Finish |
Pickling,Passivation, Polishing, Shot blasting |
|
Technics |
Welding, Seamless |
|
Connection Type |
Butt Weld, Forged |
|
Type |
Concentric Reducer, Eccentric Reducer |
|
Pressure |
Sch5s suit for low pressure, Sch80s suit for high pressure |
|
Packaging |
Export Standard Wooden case, or can be customized |
|

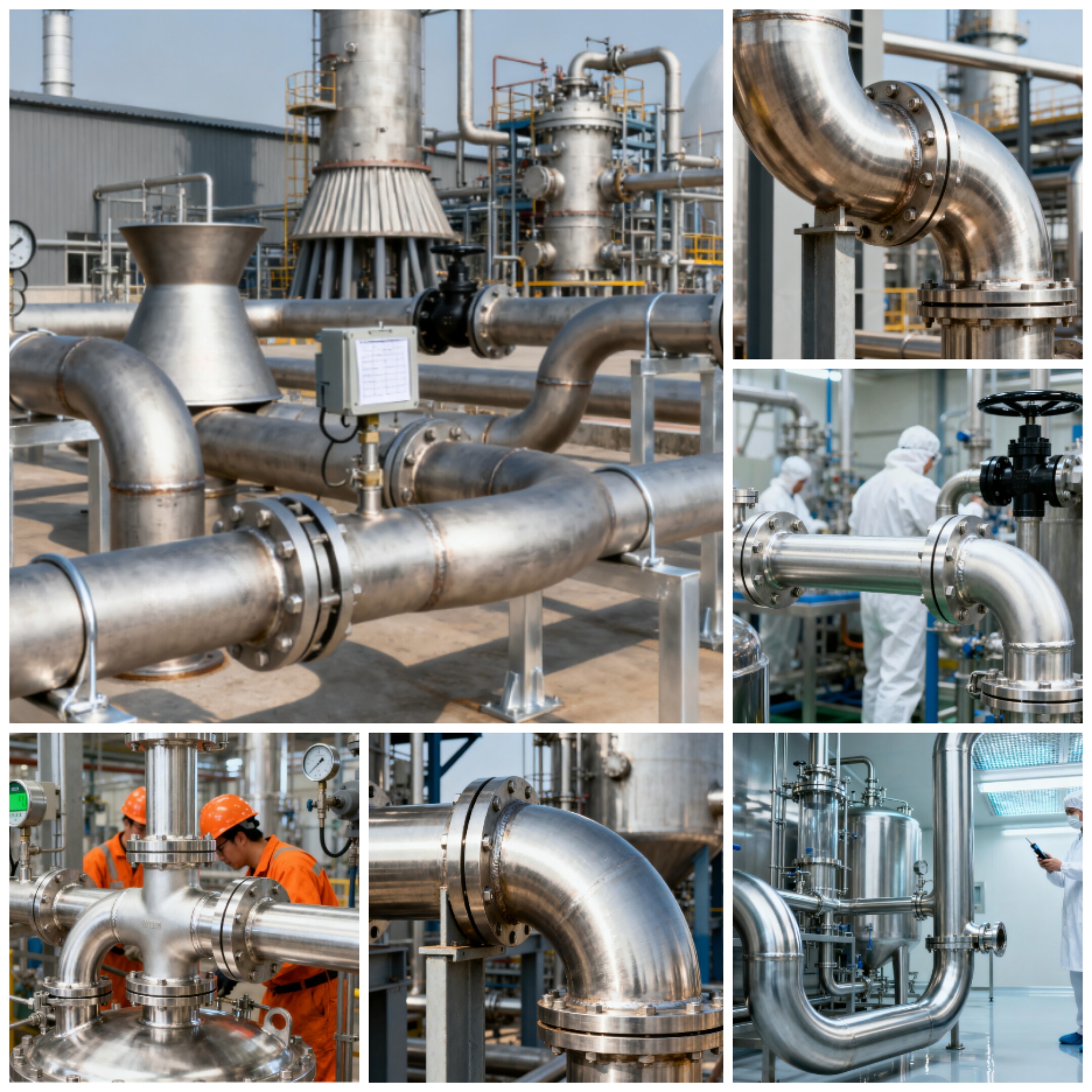

Application |
Chemical industry, Marine engineering, nuclear power, medical industry, food |
|
Nominal size |
The groove outside diameter |
Reducing tube length h |
|||
|
Big end d |
Small end d1 |
||||
|
I Series |
II Series |
I Series |
II Series |
||
|
20X15 |
26.7 |
25 |
21.3 |
18 |
38 |
|
20X10 |
26.7 |
25 |
17.3 |
14 |
38 |
|
25X20 |
33.4 |
32 |
26.7 |
25 |
51 |
|
25X15 |
33.4 |
32 |
21.3 |
18 |
51 |
|
32X25 |
42.2 |
38 |
33.4 |
32 |
51 |
|
32X20 |
42.2 |
38 |
26.7 |
25 |
51 |
|
32X15 |
42.2 |
38 |
21.3 |
18 |
51 |
|
40X32 |
48.3 |
45 |
42.2 |
38 |
64 |
|
40X25 |
48.3 |
45 |
33.4 |
32 |
64 |
|
40X20 |
48.3 |
45 |
26.7 |
25 |
64 |
|
40X15 |
48.3 |
45 |
21.3 |
18 |
64 |
|
50X40 |
60.3 |
57 |
48.3 |
45 |
76 |
|
50X32 |
60.3 |
57 |
42.2 |
38 |
76 |
|
50X25 |
60.3 |
57 |
33.4 |
32 |
76 |
|
50X20 |
60.3 |
57 |
26.7 |
25 |
76 |
|
65X50 |
73.0 |
76 |
60.3 |
57 |
89 |
|
65X40 |
73.0 |
76 |
48.3 |
45 |
89 |
|
65X32 |
73.0 |
76 |
42.2 |
38 |
89 |
|
65X25 |
73.0 |
76 |
33.4 |
32 |
89 |
|
80X65 |
88.9 |
89 |
73.0 |
76 |
89 |
|
80X50 |
88.9 |
89 |
60. 3 |
57 |
89 |
|
80X40 |
88.9 |
89 |
48.3 |
45 |
89 |
|
80X32 |
88.9 |
89 |
42.2 |
38 |
89 |
|
90X80 |
101. 6 |
—— |
88.9 |
—— |
102 |
|
90X65 |
101.6 |
—— |
73.0 |
—— |
102 |
|
90X50 |
101.6 |
—— |
60.3 |
—— |
102 |
|
90X40 |
101.6 |
—— |
48.3 |
—— |
102 |
|
90X32 |
101.6 |
—— |
42.2 |
—— |
102 |
|
100X90 |
114.3 |
—— |
101.6 |
—— |
102 |
|
100X80 |
114.3 |
108 |
88.9 |
89 |
102 |
|
100X65 |
114.3 |
108 |
73.0 |
76 |
102 |
|
100X50 |
114.3 |
108 |
60.3 |
57 |
102 |
|
100X40 |
114.3 |
108 |
48.3 |
45 |
102 |
|
125X100 |
141.3 |
133 |
114.3 |
108 |
127 |
|
125X90 |
141.3 |
—— |
101.6 |
|
127 |
|
125X80 |
141.3 |
133 |
88.9 |
89 |
127 |
|
125X65 |
141.3 |
133 |
73.0 |
76 |
127 |
|
125X50 |
141.3 |
133 |
60.3 |
57 |
127 |
|
150X125 |
168.3 |
159 |
141.3 |
133 |
140 |
|
… |
… |
… |
… |
… |
… |
|
1200 X1000 |
1219 |
1220 |
1016 |
1020 |
711 |
