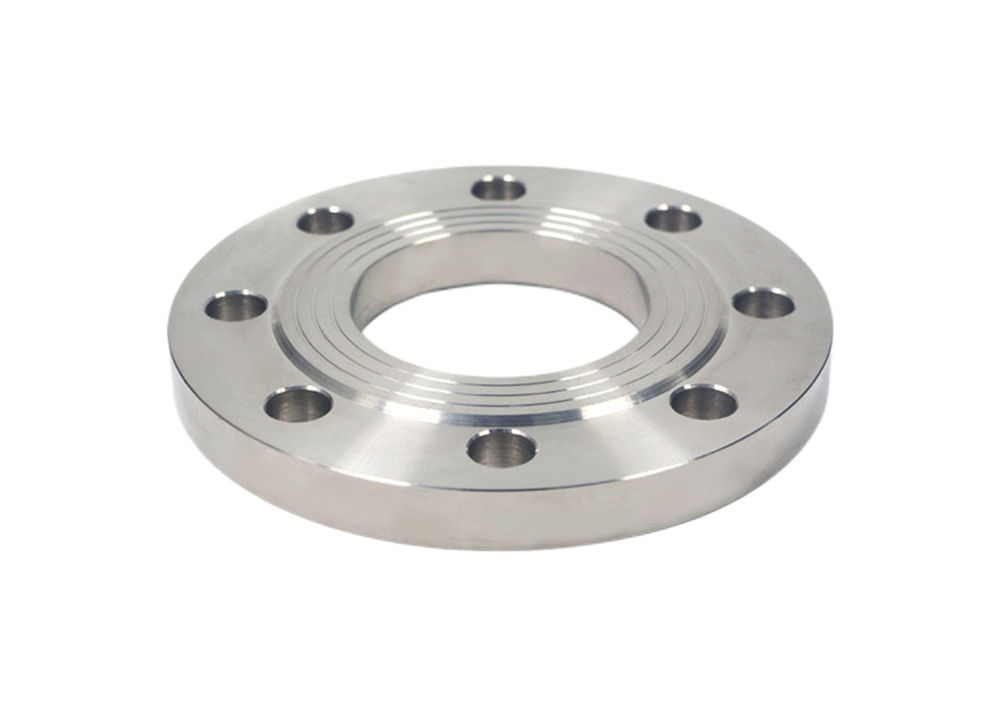

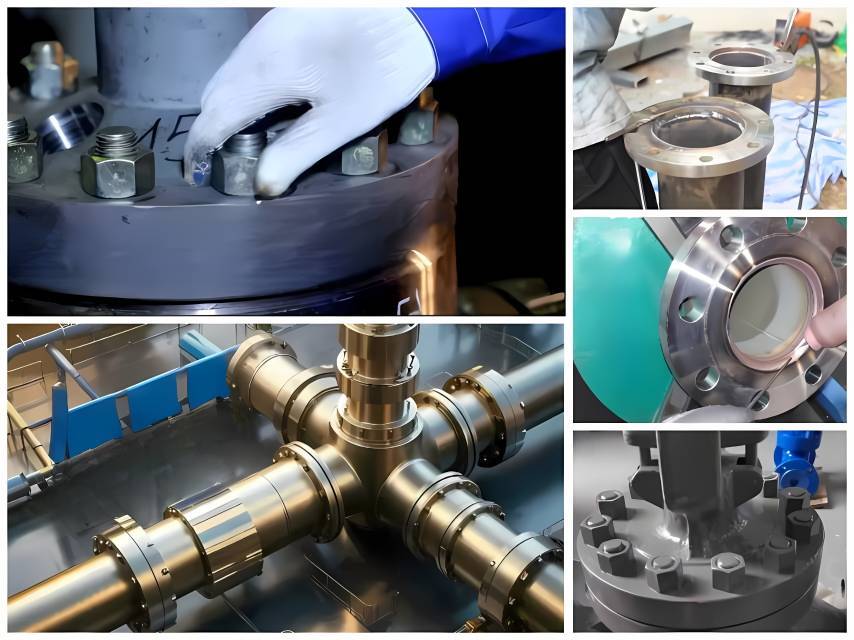

Plate flat welding titanium flange is the most common type of flange, they are made of pure titanium or titanium alloy. Plate welding titanium
flange are commonly used part and pipeline to insert the pipe into the inner hole of the flange to the proper position, and then lap welding.
Plate welding titanium flange sealing surface types include flat and raised panel flat welded flanges. Usually refers to the opening of several
fixing holes on the periphery of a disc-like metal body, which are often used to connect other things. Titanium flanges are used in pairs, and
bolts connect the two flanges.
Titanium flanges have excellent corrosion resistance and high-temperature resistance. Titanium flanges are typically used in the chemical
processing, oil and gas, Marine and aerospace industries.

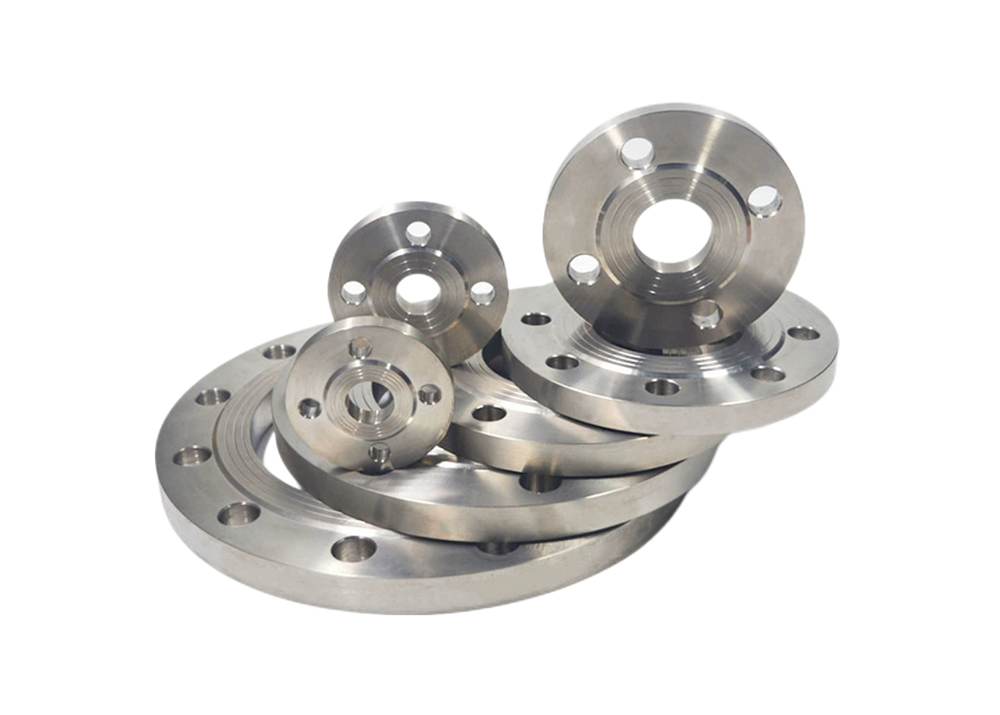

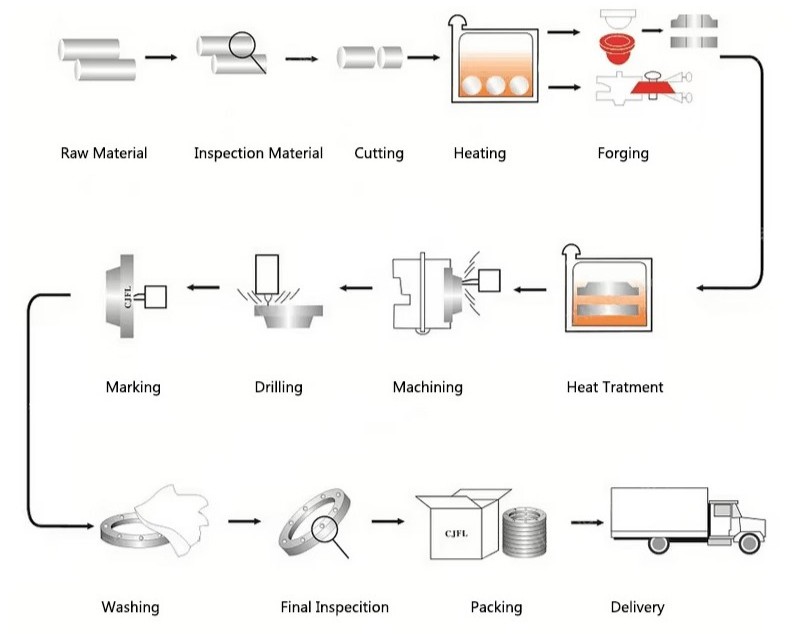

We offer full-size plate flat welding titanium flange, and also support non-standard customization accordingly to customer’s requirements
or drawings. Our titanium flanges are manufactured critically to the exact standard, including ASME,JIS,DIN,GB,GOST international standards
to meet different requirements from the customers worldwide.
|
Standard |
ASME,JIS,DIN,GB,GOST |
|
Material Designation |
TA1,TA2,TA9,TA10,GR1,GR2,GR7,GR12,GR16,N5,N6,N7 etc |
|
Size |
DN10-DN600 |
|
OEM & ODM |
Available |
|
Pressure |
PN2.5,PN6, PN10, PN16,PN25,PN40 |
|
Technics |
Forged |
|
Sealing Surface |
RF,FF |
|
Type |
Plate flat welding flange |
|
Packaging |
Export standard wooden case, or can be customized |
|
Application |
Petroleum, chemical, shipbuilding, pharmaceutical, metallurgy, machinery, food and other |

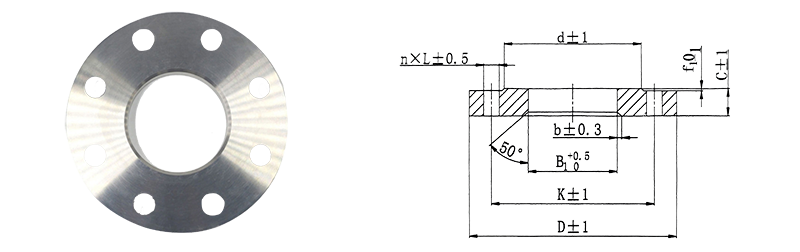

PN 40 (mm)
| Nominal diameter DN |
Outer diameter of steel pipe A₁ |
Connection size | Flange thickness C | Flange inner diameter B₁ |
Bevel width b |
||||||
| Flange outer diameter D |
The diameter of the central circle of the bolt hole K |
Bolt hole diameter L |
The number of bolt holes n(PC) |
Bolt Th |
|||||||
| A | B | A | B | ||||||||
| 10 | 17.2 | 14 | 90 | 60 | 14 | 4 | M12 | 14 | 18 | 15 | 4 |
| 15 | 21.3 | 18 | 95 | 65 | 14 | 4 | M12 | 14 | 22.5 | 19 | 4 |
| 20 | 26.9 | 25 | 105 | 75 | 14 | 4 | M12 | 16 | 27.5 | 26 | 4 |
| 25 | 33.7 | 32 | 115 | 85 | 14 | 4 | M12 | 16 | 34.5 | 33 | 5 |
| 32 | 42.4 | 38 | 140 | 100 | 18 | 4 | M16 | 18 | 43.5 | 39 | 5 |
| 40 | 48.3 | 45 | 150 | 110 | 18 | 4 | M16 | 18 | 49.5 | 46 | 5 |
| 50 | 60.3 | 57 | 165 | 125 | 18 | 4 | M16 | 20 | 61.5 | 59 | 5 |
| 65 | 76.1 | 76 | 185 | 145 | 18 | 8 | M16 | 22 | 77.5 | 78 | 6 |
| 80 | 88.9 | 89 | 200 | 160 | 18 | 8 | M16 | 24 | 90.5 | 91 | 6 |
| 100 | 114.3 | 108 | 235 | 190 | 22 | 8 | M20 | 26 | 116 | 110 | 6 |
| 125 | 139.7 | 133 | 270 | 220 | 26 | 8 | M24 | 28 | 143.5 | 135 | 6 |
| 150 | 168.3 | 159 | 300 | 250 | 26 | 8 | M24 | 30 | 170.5 | 161 | 6 |
| 200 | 219.1 | 219 | 375 | 320 | 30 | 12 | M27 | 36 | 221.5 | 222 | 8 |
| 250 | 273 | 273 | 450 | 385 | 33 | 12 | M30 | 42 | 276.5 | 276 | 10 |
| 300 | 323.9 | 325 | 515 | 450 | 33 | 16 | M30 | 48 | 328 | 328 | 11 |
| 350 | 355.6 | 377 | 580 | 510 | 36 | 16 | M33 | 54 | 360 | 381 | 12 |
| 400 | 406.4 | 426 | 660 | 585 | 39 | 16 | M36×3 | 60 | 411 | 430 | 12 |
| 450 | 457 | 480 | 685 | 610 | 39 | 20 | M36×3 | 66 | 462 | 485 | 12 |
| 500 | 508 | 530 | 755 | 670 | 42 | 20 | M39×3 | 72 | 513.5 | 535 | 12 |
| 600 | 610 | 630 | 890 | 795 | 48 | 20 | M45×3 | 84 | 616.5 | 636 | 12 |
Titanium flanges, with their high strength-to-weight ratio, high-temperature resistance, corrosion resistance, and excellent fatigue performance,
have become core components in six high-end sectors: aerospace, petrochemicals, marine engineering, new energy, electronics, and
environmental protection. Their exceptional reliability and durability significantly enhance the overall performance, safety, and service life of
equipment, making them an indispensable key material for modern industry's drive towards higher efficiency, lighter weight, and longer lifespans.
