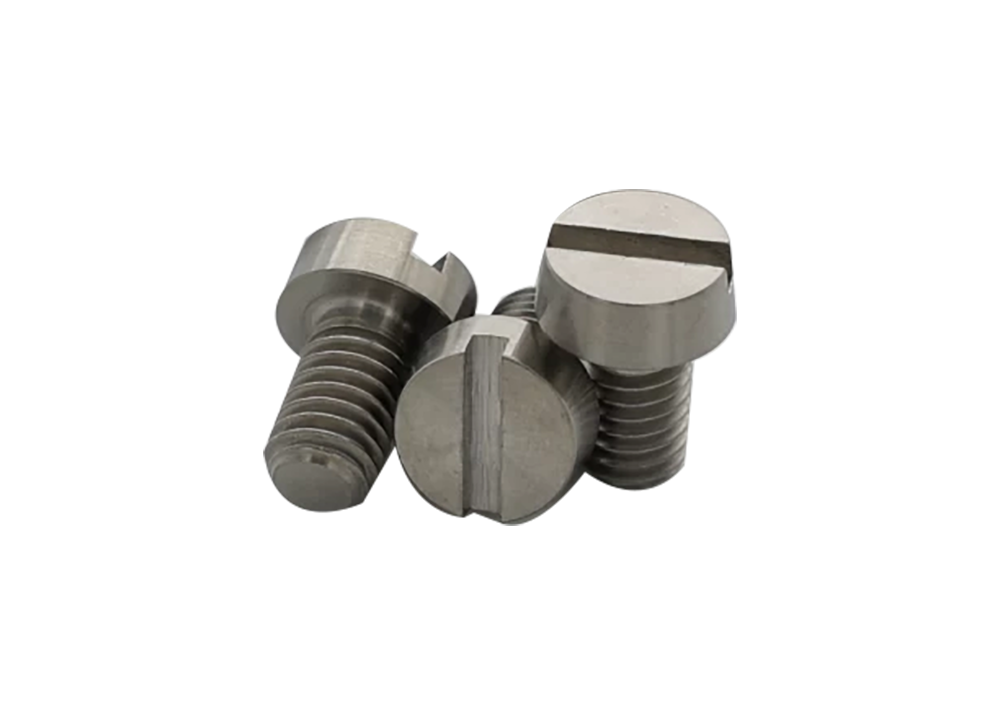

Titanium slotted head screw is a common and widely used type of fastener, featured with their unique one-slotted head
design. This type of screw not only has an attractive appearance but also features high connection strength, making it
suitable for a wide range of precision machinery and instruments. Its disc head design enhances the strength of the nail
head, making it particularly suitable for the connection of common components and providing a stable fastening effect.

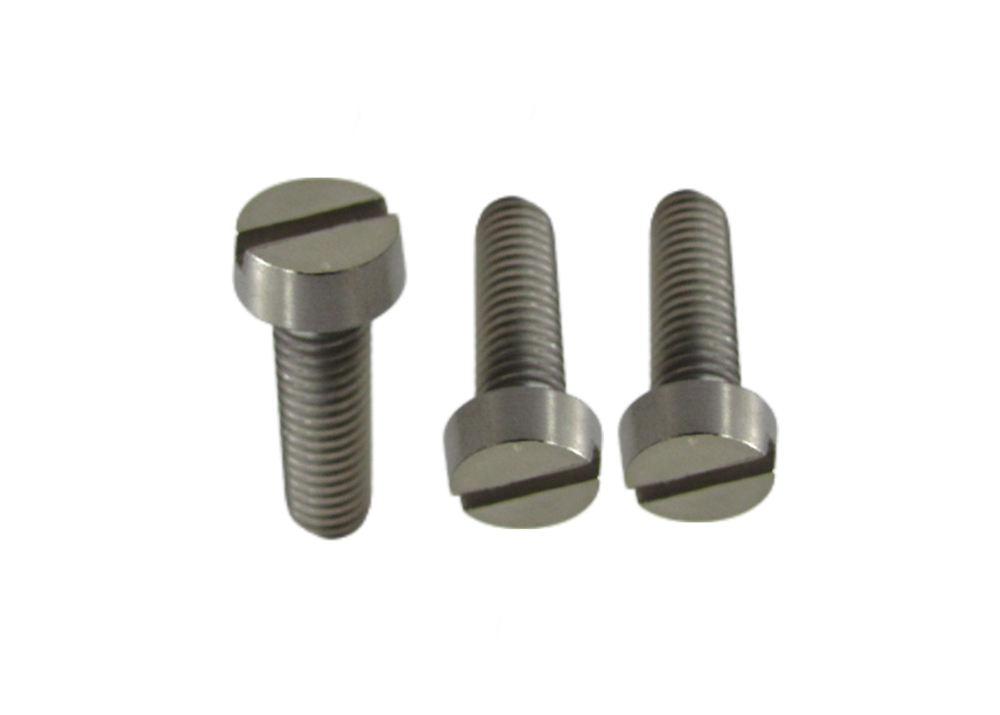

Titanium slotted cheese head screw is made of pure titanium or titanium alloy material, which makes it excellent
corrosion resistance and can be used for a long time in damp or corrosive environments without rusting. In addition,
titanium material also features with high strength and low density, which enables the screw to maintain the fastening
force while reducing the overall weight. This makes titanium screws particularly suitable for fields such as aerospace,
medical care and chemical engineering, which have extremely high requirements for material performance.

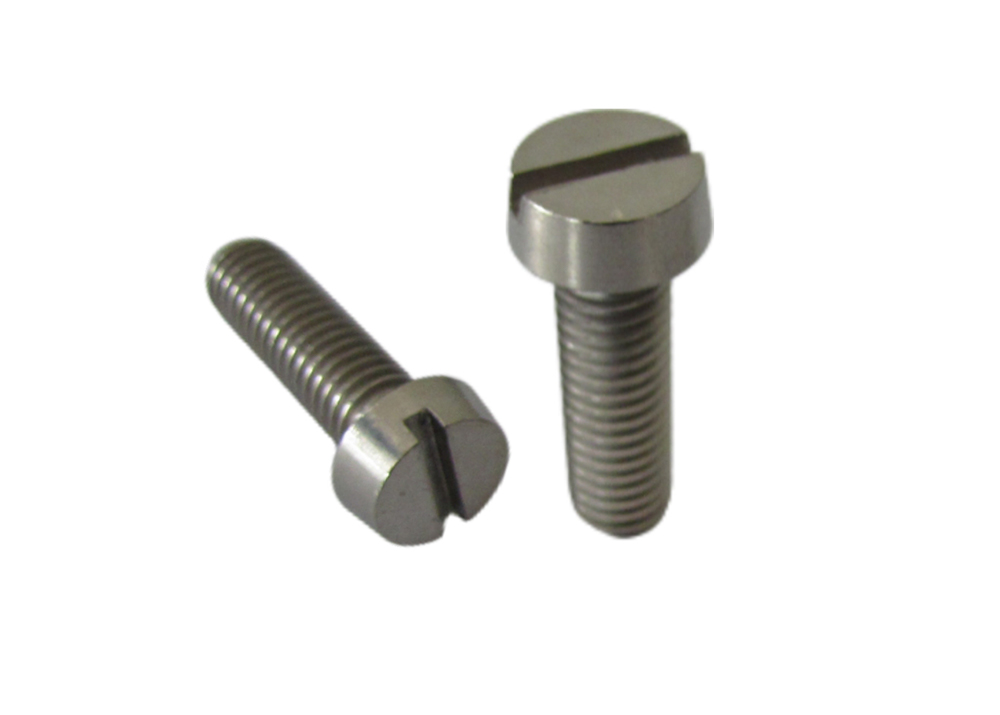

Titanium slotted head cap screws are available with standard-sized, we also offer non-standard customization based on
customer requirements or drawings.
|
Standard |
GB,ISO,DIN,ANSI,ASME,JIS |
|
Material |
TA1,TA2,TC4,GR1,GR2,GR5 etc |
|
Size |
M1.6-M10 |
|
OEM |
Available |
|
Technics |
CNC Machined |
|
Head Type |
Slotted Head |
|
Surface |
Polished |
|
Features |
Light weight, High Tensile, Anti-corrosion |
|
Type |
Titanium Screw |
|
Packaging |
Export standard wooden case, or can be customized |
|
Application |
aerospace, shipping, medical, chemical, racing, and high-end bicycles, automobile manufacturing and Marine engineering. |

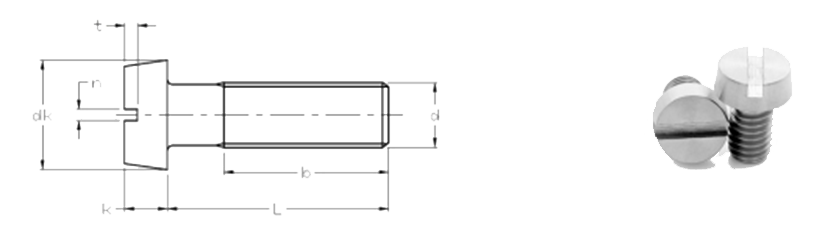

DIN 84-1990
|
Thread specification d |
M1 |
M1.2 |
M1.4 |
M1.6 |
(M1.8) |
M2 |
M2.5 |
M3 |
(M3.5) |
M4 |
M5 |
M6 |
M8 |
M10 |
|
|
P |
Pitch |
0.25 |
0.25 |
0.3 |
0.35 |
0.35 |
0.4 |
0.45 |
0.5 |
0.6 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
|
a |
Maximum |
0.5 |
0.5 |
0.6 |
0.7 |
0.7 |
0.8 |
0.9 |
1 |
1.2 |
1.4 |
1.6 |
2 |
2.5 |
3 |
|
b |
Minimum |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
38 |
38 |
38 |
38 |
38 |
38 |
|
Maximum = nominal |
2 |
2.3 |
2.6 |
3 |
3.4 |
3.8 |
4.5 |
5.5 |
6 |
7 |
8.5 |
10 |
13 |
16 |
|
|
dk |
Minimum |
1.86 |
2.16 |
2.46 |
2.86 |
3.22 |
3.62 |
4.32 |
5.32 |
5.82 |
6.78 |
8.28 |
9.78 |
12.73 |
15.73 |
|
k |
Maximum = nominal |
0.7 |
0.8 |
0.9 |
1 |
1.2 |
1.3 |
1.6 |
2 |
2.4 |
2.6 |
3.3 |
3.9 |
5 |
6 |
|
Minimum |
0.56 |
0.66 |
0.76 |
0.86 |
1.06 |
1.16 |
1.46 |
1.86 |
2.26 |
2.46 |
3.12 |
3.6 |
4.7 |
5.7 |
|
|
n |
Maximum |
0.45 |
0.5 |
0.5 |
0.6 |
0.6 |
0.7 |
0.8 |
1 |
1.2 |
1.51 |
1.51 |
1.91 |
2.31 |
2.81 |
|
Minimum |
0.31 |
0.36 |
0.36 |
0.46 |
0.46 |
0.56 |
0.66 |
0.86 |
1.06 |
1.26 |
1.26 |
1.66 |
2.06 |
2.56 |
|
|
t |
Minimum |
0.25 |
0.3 |
0.4 |
0.45 |
0.5 |
0.6 |
0.7 |
0.85 |
1 |
1.1 |
1.3 |
1.6 |
2 |
2.4 |
|
x |
Maximum |
0.6 |
0.6 |
0.75 |
0.9 |
0.9 |
1 |
1.1 |
1.25 |
1.5 |
1.75 |
2 |
2.5 |
3.2 |
3.8 |
Titanium fasteners play an important role in various industries due to their excellent advantages such as high strength
and low density, corrosion resistance, and high and low temperature resistance. These industries include automotive
and motorcycle, aerospace, medical, chemical and petroleum, and high-end bicycle industries.
