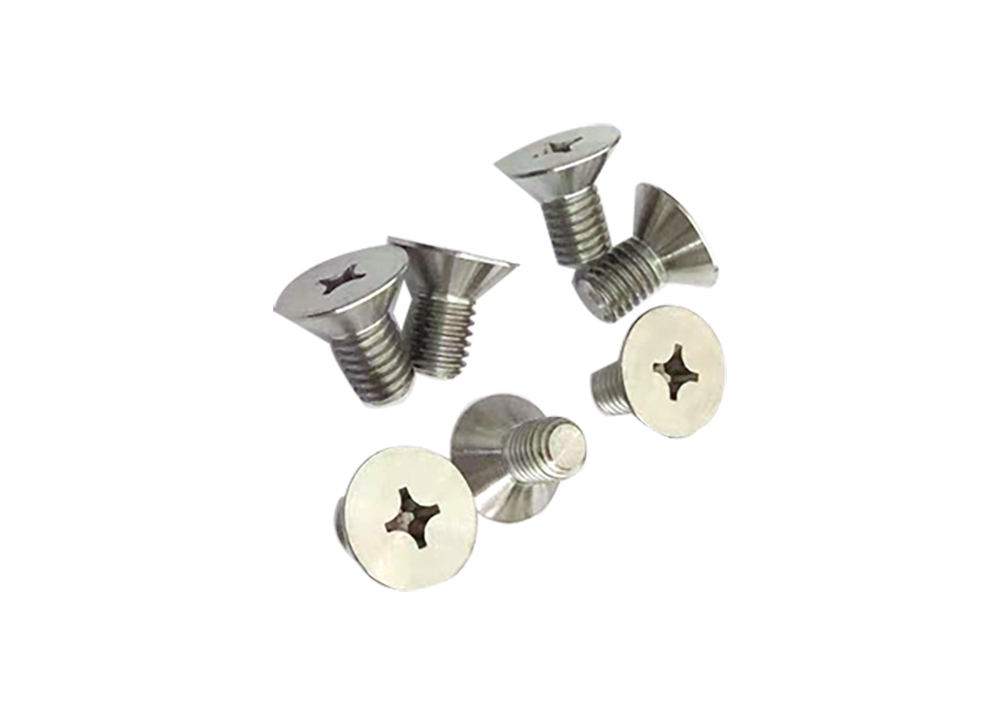

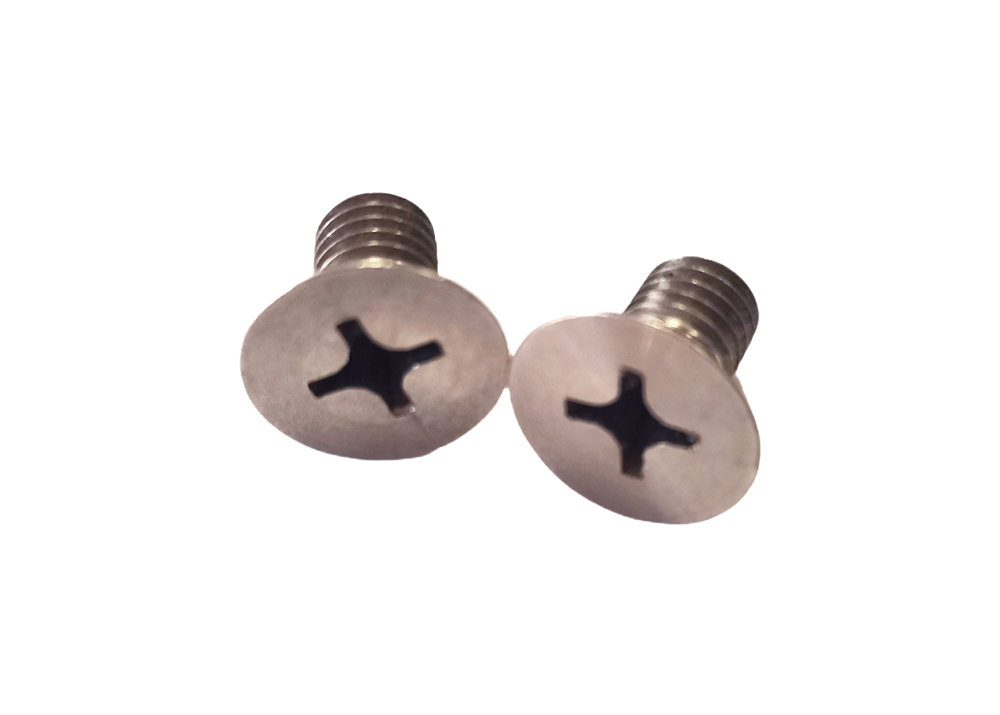

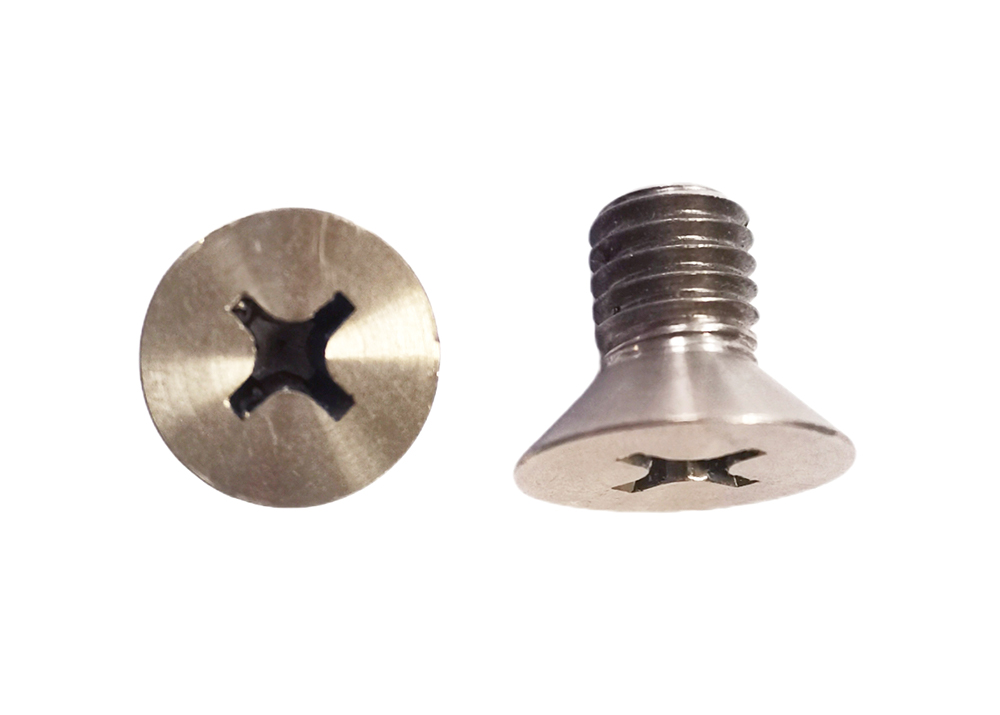

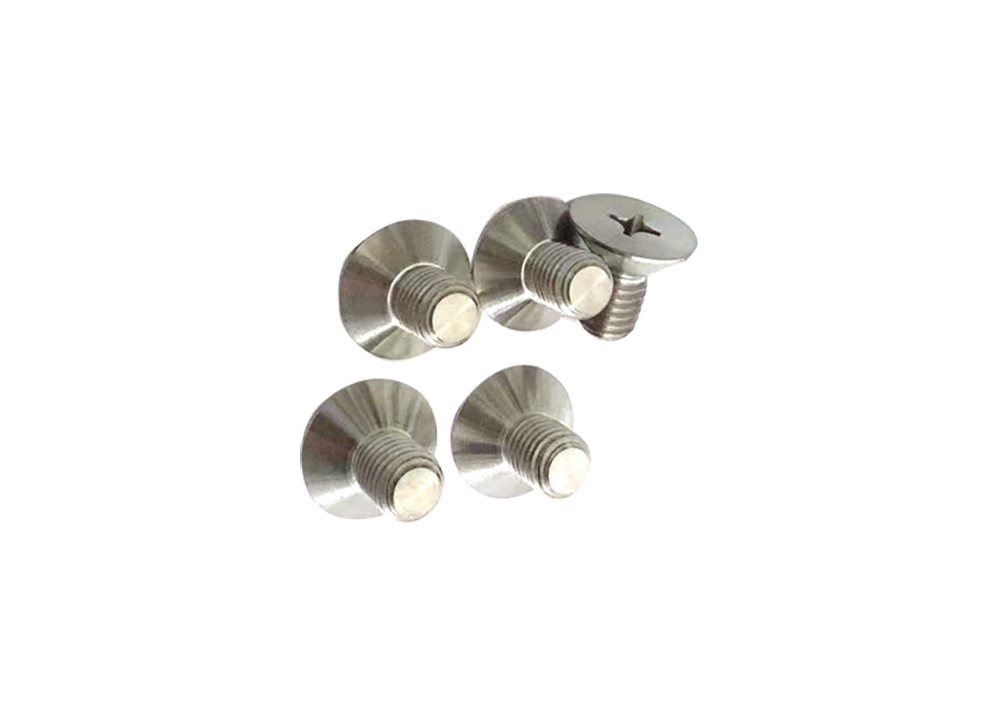

Titanium countersunk flat head screw is made of titanium material and features light weight, high strength, corrosion
resistance, extreme temperature adaptability, non-magnetism and biocompatibility. Its anti-damping property enhances
stability, making it suitable for harsh scenarios. Although the cost is relatively high, its long-term reliability reduces
maintenance costs, and its flexible processing meets customized requirements.
Titanium countersunk cross screw is suitable for situations where the nail heads are not allowed to be exposed, but for
parts with through holes, corresponding conical countersunk holes must be made on the surface. It is commonly found
in machinery, electrical appliances and buildings, etc. It is used to connect two parts to be connected. One of the parts
is made through, and the other part is made with an internal threaded hole.
Titanium phillips screws are widely applied in industries such as bicycles, motorcycles, automobiles, racing cars, yachts,
sports, electronics, pharmaceuticals, petroleum, metallurgy, chemical engineering, seawater desalination, Marine
engineering, and construction! Our screws are backed by a professional R&D team and advanced production
technology. We can provide standard-sized hexagonal screws and also offer non-standard customization based on
customer requirements or drawings.
|
Standard |
GB,ISO,DIN,ANSI,ASME,JIS |
|
Material |
TA1,TA2,TC4,GR1,GR2,GR5 etc |
|
Size |
M1.6-M10 |
|
OEM/ODM |
Available |
|
Technics |
CNC machine screwing |
|
Head Type |
Countersunk head |
|
Surface |
Polished |
|
Features |
Light weight, High Tensile, Anti-corrosion |
|
Type |
Titanium screw |
|
Packaging |
Export standard wooden case, or can be customized |
|
Application |
aerospace, shipping, medical, chemical, racing, and high-end bicycles, automobile manufacturing and Marine engineering. |
| Thread specifications d |
M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | |
| P | Pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
| a | Maximum | 0.7 | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.5 | 3 |
| b | Minimum | 15 | 16 | 18 | 19 | 20 | 22 | 25 | 28 | 34 | 40 |
| dₖ | Maximum value = nominal | 3 | 3.8 | 4.7 | 5.6 | 6.5 | 7.5 | 9.2 | 11 | 14.5 | 18 |
| Minimum | 2.75 | 3.5 | 4.4 | 5.3 | 6.14 | 7.14 | 8.84 | 10.57 | 14.07 | 17.57 | |
| k | Maximum | 0.96 | 1.2 | 1.5 | 1.65 | 1.93 | 2.2 | 2.5 | 3 | 4 | 5 |
| x | Maximum | 0.9 | 1 | 1.1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3.2 | 3.8 |
| slot number | 0 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 4 | 4 | |
| M₁ | ≈ | 1.7 | 2.35 | 2.7 | 2.9 | 3.9 | 4.4 | 4.6 | 6.6 | 8.7 | 9.6 |
| M₂ | ≈ | 1.8 | 2.2 | 2.5 | 2.8 | 3.7 | 4 | 4.4 | 6.1 | 8.5 | 9.4 |

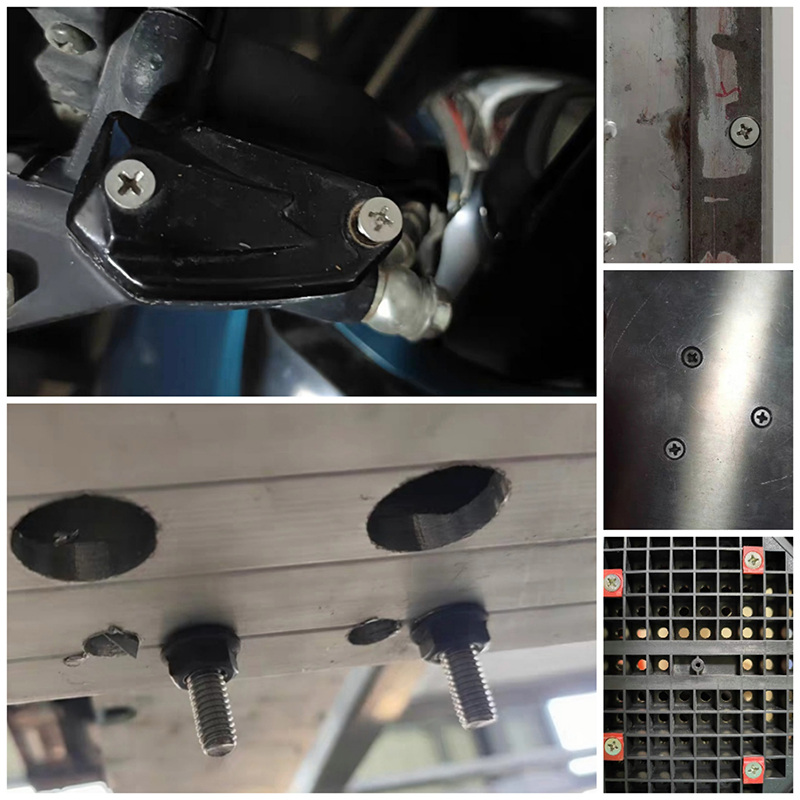

Titanium fasteners play an important role in various industries due to their excellent advantages such as high strength
and low density, corrosion resistance, and high and low temperature resistance. These industries include automotive
and motorcycle, aerospace, medical, chemical and petroleum, and high-end bicycle industries.
