PN 25 Slip-On Titanium Flange

Standard: ASME,JIS,DIN,GB,GOST
Material: TA1,TA2,GR2,GR7,GR12,GR16,N5 etc
OEM&ODM: Available
Technics:Forged
Size: DN10-DN600
  • Description

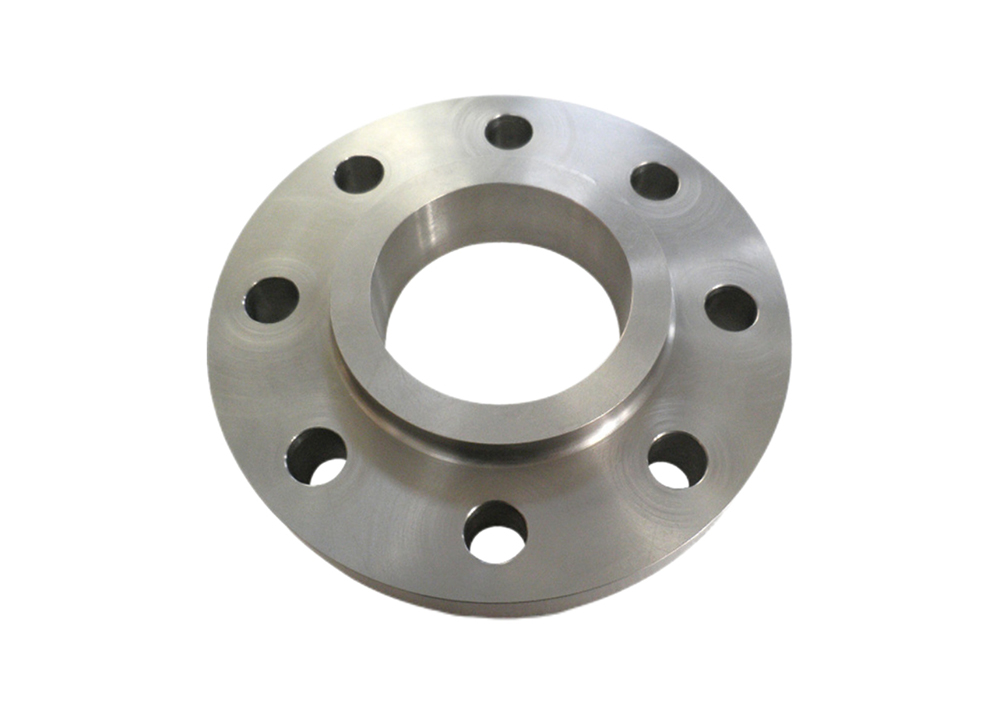

Slip-On titanium Flange, also referred to as SO titanium flange, is a commonly used type of flange in pipeline systems.

It features with a short neck (conical neck), which connects to the pipe through a flat welding method.



Titanium Slip-On Flange main material is industrial pure titanium or titanium alloy. The pressure rating packages

include PN6,PN10,PN16,PN25 and PN40. Among them, the common specifications of PN25 range from

DN10 to DN600  and the surface can be processed into forms such as RF,MFM,TG, and FF according to

requirements.



Flat welded titanium flange available with standard size, also support non-standard customization accordingly to

customer's requirements or drawings. Our titanium flanges are manufactured critically to the exact standard, including

ASME,JIS,DIN,GB,GOST international standards to meet different requirements from the customers worldwide.



Details

Standard

ASME,JIS,DIN,GB,GOST

Material Designation

TA1,TA2,TA9,TA10,GR1,GR2,GR7,GR12,GR16,N5,N6,N7 etc

Size

DN10-DN600

OEM/ODM

Available

Pressure

PN6,PN10,PN16,PN25,PN40

Technics

Forged

Sealing Surface

RF,MFM,TG,FF

Type

Slip-On Titanium Flange

Packaging

Export standard wooden case, or can be customized

Application

Petroleum, Chemical, Shipbuilding, Pharmaceutical, Metallurgy, Machinery, Stamping Elbow, Food And Other



Specification

slip on flange welding

PN25(mm)

Nominal diameter
DN
Outer diameter of steel pipe
A₁
Connection size Flange thickness
C
Flange bore
B₁
Flange neck Flange height
H
Bevel width b
Flange outside diameter
D
Diameter of center circle of bolt hole
K
Bolt hole diameter
L
Number of bolt holes
n(pc)
Bolt
Th
N R
A B A B A B
10 17.2 14 90 60 14 4 M12 16 18 15 30 30 4 22 4
15 21.3 18 95 65 14 4 M12 16 22.5 19 35 35 4 22 4
20 26.9 25 105 75 14 4 M12 18 27.5 26 45 45 4 26 4
25 33.7 32 115 85 14 4 M12 18 34.5 33 52 52 4 28 5
32 42.4 38 140 100 18 4 M16 18 43.5 39 60 60 6 30 5
40 48.3 45 150 110 18 4 M16 18 49.5 46 70 70 6 32 5
50 60.3 57 165 125 18 4 M16 20 61.5 59 84 84 6 34 5
65 76.1 76 185 145 18 8 M16 22 77.5 78 104 104 6 38 6
80 88.9 89 200 160 18 8 M16 24 90.5 91 118 118 8 40 6
100 114.3 108 235 190 22 8 M20 24 116 110 145 145 8 44 6
125 139.7 133 270 220 26 8 M24 26 143.5 135 170 170 8 48 6
150 168.3 159 300 250 26 8 M24 28 170.5 161 200 200 10 52 6
200 219.1 219 360 310 26 12 M24 30 221.5 222 256 256 10 52 8
250 273 273 425 370 30 12 M27 32 276.5 276 310 310 12 60 10
300 323.9 325 485 430 30 16 M27 34 328 328 364 364 12 67 11
350 355.6 377 555 490 33 16 M30 38 360 381 418 430 12 72 12
400 406.4 426 620 550 36 16 M33 40 411 430 472 492 12 78 12
450 457 480 670 600 36 20 M33 46 462 485 520 542 12 84 12
500 508 530 730 660 36 20 M33 48 513.5 535 580 602 12 90 12
600 610 630 845 770 39 20 M36×3 58 616.5 636 684 704 12 100 12



Application

Titanium flanges, with their high strength-to-weight ratio, high-temperature resistance, corrosion resistance and

excellent fatigue performance,have become core components in six high-end sectors: Aerospace,Petrochemicals,

Marine Engineering, New Energy, Electronics and Environmental Protection.

1application

Process

1法兰加工工艺图



Packaging

1packing
