Titanium Screw + Titanium Nut: Never Force Them! – A Beginner-Friendly Guide

Titanium alloy screws and nuts are light, strong, and rust-proof – they look premium. But there's a major pitfall: directly threading these two together is very prone to "galling". What is galling? It's when you're turning the screw and suddenly it seizes up – you can't tighten it further, nor can you remove it. Eventually you have to cut it off and scrap it. Here's a plain-language guide to avoid that.

Ⅰ. Why does galling happen? A simple analogy

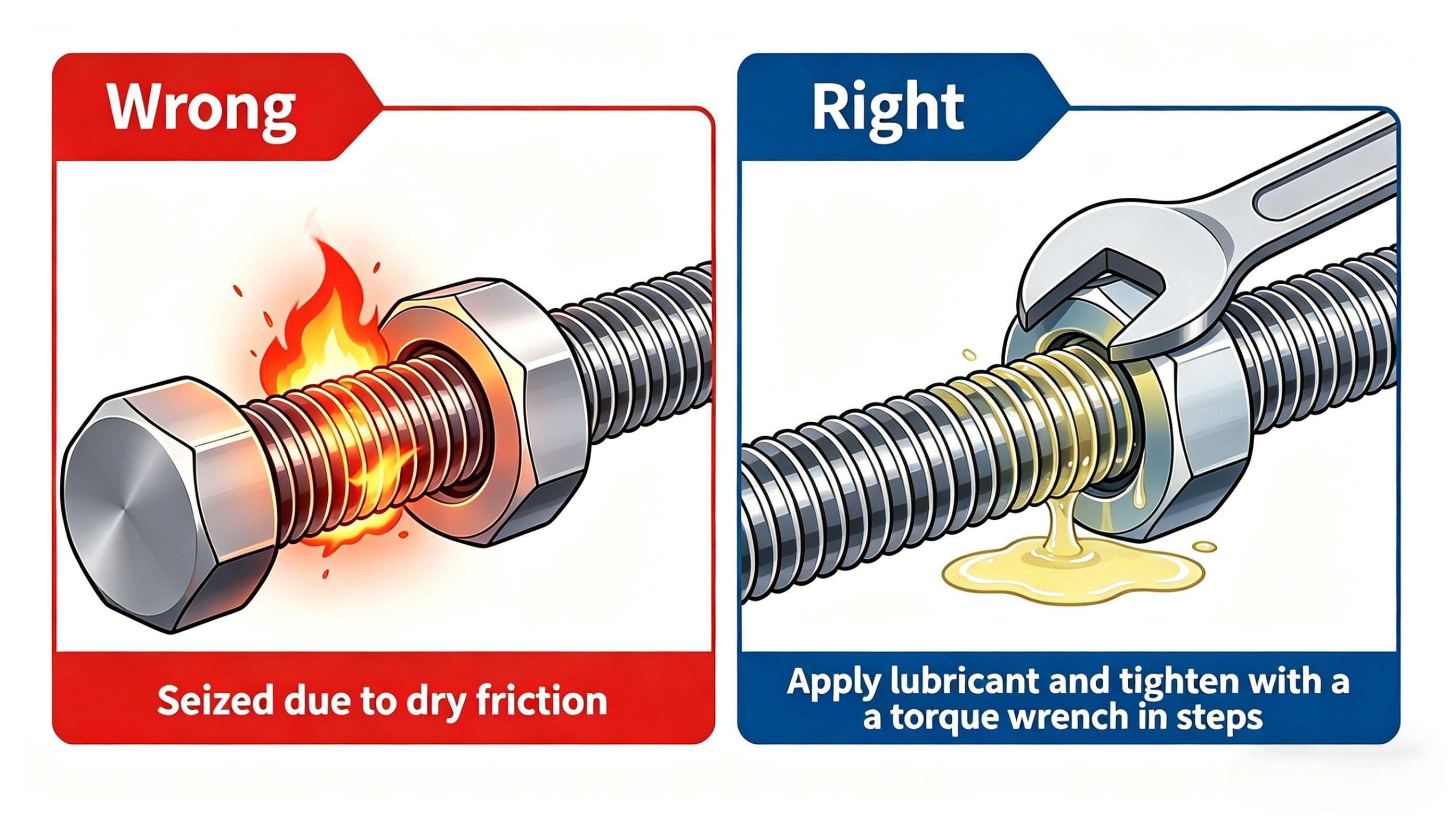

Rub two dry pieces of rubber together – they quickly heat up, get sticky, and eventually bond. Titanium threads behave similarly. As you tighten, friction generates heat. Titanium dissipates heat slowly, so local temperatures spike. The protective oxide layer on the surface gets scraped off, exposing fresh, highly "reactive" titanium. The two threads essentially cold-weld together.
In short: Titanium hates dry friction – dry friction means death.

Ⅱ. Three must‑do steps before assembly

1. Avoid all‑titanium if possible
   The safest combination is titanium screw + copper nut or stainless steel nut. Dissimilar metals are much less likely to weld. If you absolutely must use titanium on titanium, lubricant is your lifesaver.
2. Lubricant is a must, not an option
   Never use regular grease or motor oil – they contain sulfur and chlorine that can corrode titanium, making it brittle. Buy a small can of molybdenum disulfide (MoS₂) lubricant or nickel‑based anti‑seize compound (around $10–20, lasts a long time). Before applying, wipe the threads clean with a lint‑free cloth.
3. Hand‑thread first
   After applying lubricant, hand‑thread the screw fully into the nut. The action should be smooth with no resistance. If you feel any rubbing or catching, back it out immediately and check – forcing it at this point will almost certainly cause immediate galling.

Ⅲ. While tightening – three "nevers"

1. No impact wrenches or power tools
   High‑speed tools generate massive frictional heat, welding the threads in seconds. Stick to a manual torque wrench, or use an electric drill on its slowest setting (≤25 RPM).
2. Do not tighten in one go
   The correct method is three steps:

         -Tighten to 30% of your target torque, pause a few seconds

         -Then to 60% , pause again

         -Finally, to 100%
      This is called "step tightening" – it allows heat to dissipate and stress to relax.

3. Do not over‑tighten
   Titanium is softer than steel and less elastic. Over‑tightening will either strip the threads or snap the screw. Use the torque values below (with lubricant). Don't rely on "feel".

         -For an M4 screw: about 1 N·m – that's roughly the force you apply when lightly pinching the wrench handle with your fingers.

         -For an M6 screw: about 3.5 to 4 N·m.

         -For an M8 screw: about 8 to 10 N·m.

         -For an M10 screw: about 17 to 20 N·m.

      No torque wrench? Be conservative: use a standard hex key and tighten gently with one hand. Stop when you feel significant resistance.

4. Keep the screw straight
   If the screw goes in at an angle, it will bind on one side and gall more easily. Visually ensure the screw enters perpendicular to the nut face.

Ⅳ. While removing – two "absolutes"

1. Never use an open flame
   Titanium absorbs oxygen above 400°C (750°F) and becomes brittle like glass, leading to sudden fracture. If a joint is stuck, use a heat gun to warm it until it's warm but not hot to the touch (~150°C / 300°F) – that's enough.
2. Never reuse a removed titanium screw
   After one tightening cycle, titanium threads undergo microscopic deformation that you cannot see. Reusing them means either they won't hold torque, or they can snap unexpectedly. Spending a few bucks on a new screw is cheap safety.

In a nutshell

 Lubricate, tighten slowly, use three steps, and single‑use only.
 Remember these ten words and your titanium fasteners won't "commit suicide".
