The "Face Project" of Titanium Bent Pipes: What Is Surface Treatment Actually Doing?

When a titanium bent pipe emerges from the machine or heating furnace, it is far from the sleek, shiny product you might imagine. Its surface may be dull, covered in a layer of oxide scale, or even stained with residual lubricants. Sell it as-is? Not presentable—and performance wouldn't meet standards either. So, it has to go through a "beauty treatment"—surface finishing.

Why bother with this extra process? In plain terms, for three main reasons.

First, get rid of contaminants.
During the bending process, the pipe inevitably comes into contact with lubricants, develops oxide scale from heating, and may even pick up tiny embedded iron particles. If not removed, these impurities can affect subsequent processing steps or, worse, become initiation sites for corrosion during service.

Second, enhance performance.
Titanium is naturally corrosion-resistant, but proper surface treatment can make it even better. For example, anodizing increases surface hardness and wear resistance, while micro-arc oxidation can push hardness close to that of ceramics.

Third, aesthetics.
Let's be honest—sometimes you're specifically drawn to that golden or blue titanium bent pipe. The colorful films produced by anodizing serve both functional and decorative purposes.

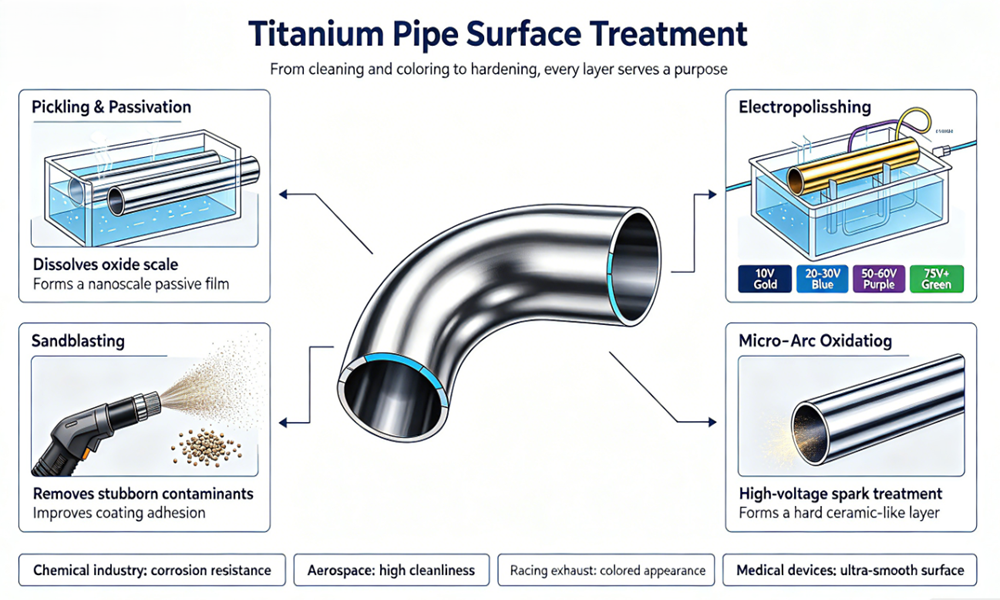

Pickling and Passivation: Giving the Titanium Pipe a "Bath"
This is the most basic and widely used step. After hot bending, titanium pipes develop an oxide scale that may range from gray-blue to black. This layer is not only unsightly but also reduces corrosion resistance. Typically, a mixed solution of nitric acid and hydrofluoric acid is used to immerse the pipe and dissolve the oxide scale. At the same time, the nitric acid causes a new, nanometer-thick dense oxide film to form on the titanium surface—this is "passivation." The passivation film is extremely thin, almost invisible, but it is the fundamental reason why titanium "never rusts."

Sandblasting: Abrading Away the "Old Skin"
Pickling is a chemical method, but some stubborn oxide layers or contaminants require physical means. Sandblasting uses compressed air to propel fine sand particles or glass beads at high velocity against the titanium surface, knocking off the oxide scale and dirt. Sandblasting also has an extra benefit: it roughens the surface, improving the adhesion of subsequent coatings or paints.

Anodizing: How Does That Colorful "Skin" Form?
The golden, blue, or purple titanium bent pipes you see are mostly products of anodizing.
The principle is simple: place the titanium pipe in an electrolyte bath and apply an electric current. By controlling the voltage, the thickness of the oxide film on the surface changes. Different film thicknesses refract different wavelengths of light, producing different colors to the human eye. For example, around 10V yields gold, 20–30V gives blue, 50–60V produces purple, above 75V turns green, and even higher voltages shift to gray and white.
But anodizing isn't just about looks. This oxide film has a much higher hardness than the base metal and further improves corrosion resistance. However, you should know: this colored film is actually quite thin—don't expect it to resist scratches; it's more of an "icing on the cake."

Electropolishing: A Mirror Finish That Shines
What's the ultimate level of polishing? Like a mirror. Electropolishing is used for exactly that. The titanium pipe is placed in an electrolyte and electrified; microscopic protrusions on the surface dissolve preferentially, leaving an extremely smooth and even surface. Medical-grade titanium pipes demand exceptionally high surface smoothness, making electropolishing almost mandatory.

Micro-Arc Oxidation: The "Armor" on Titanium Surfaces
If you need a much harder surface than anodizing provides, micro-arc oxidation is the answer. Using much higher voltages (hundreds of volts), tiny spark discharges are created on the titanium surface. These sparks momentarily melt the titanium, which then resolidifies, forming a hard ceramic-like layer composed primarily of titanium oxide. Hardness can exceed 1000 HV—comparable to ceramics—making it excellent for resisting wear.

Different Scenarios, Different "Faces"
Each process has its clear role:

• Chemical industry titanium bent pipes:Usually just pickling and passivation—sufficient for corrosion resistance.
• Aerospace applications:After pickling, sandblasting or magnetic finishing is often added. Internal wall smoothness and cleanliness are extremely demanding, as any contamination could harm hydraulic systems.
• Racing exhaust pipes:Anodized for coloring—customers are buying that gold-blue-purple visual effect.
• Medical devices:Electropolished to a surface so smooth that bacteria can hardly adhere.

The surface treatment of titanium bent pipes is no mystery. It simply answers one question: What will this pipe endure? What environment will it face? What standards must it meet? The answer determines whether to pickle, sandblast, color, or polish to a mirror finish. Every step in surface treatment has its purpose—not just for looks, but to ensure that titanium truly fulfills its potential in that pipe
