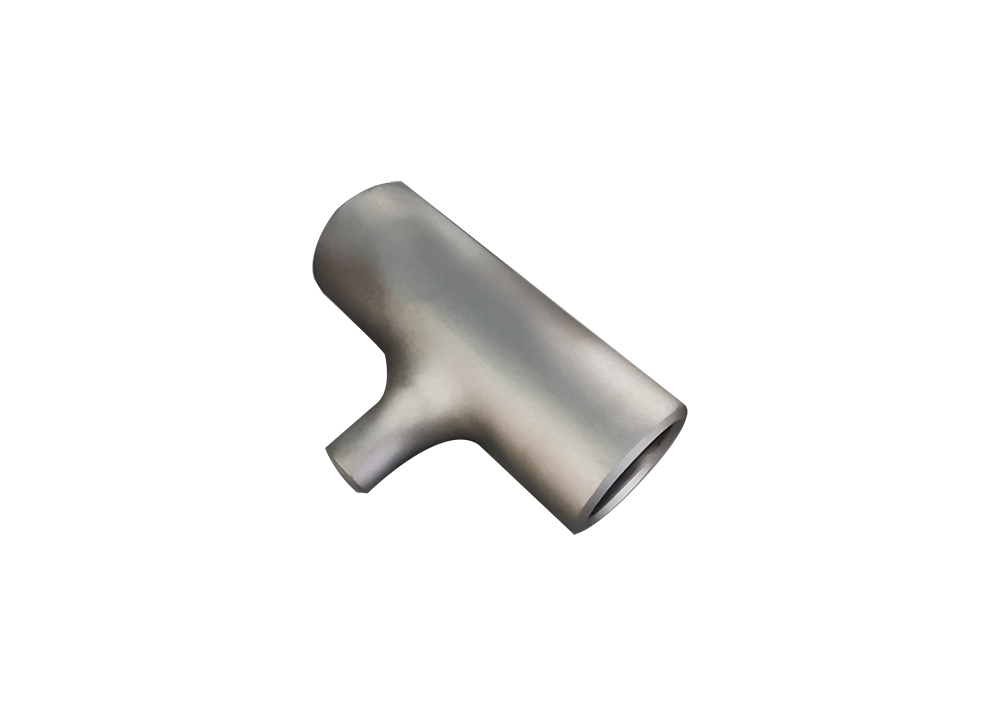

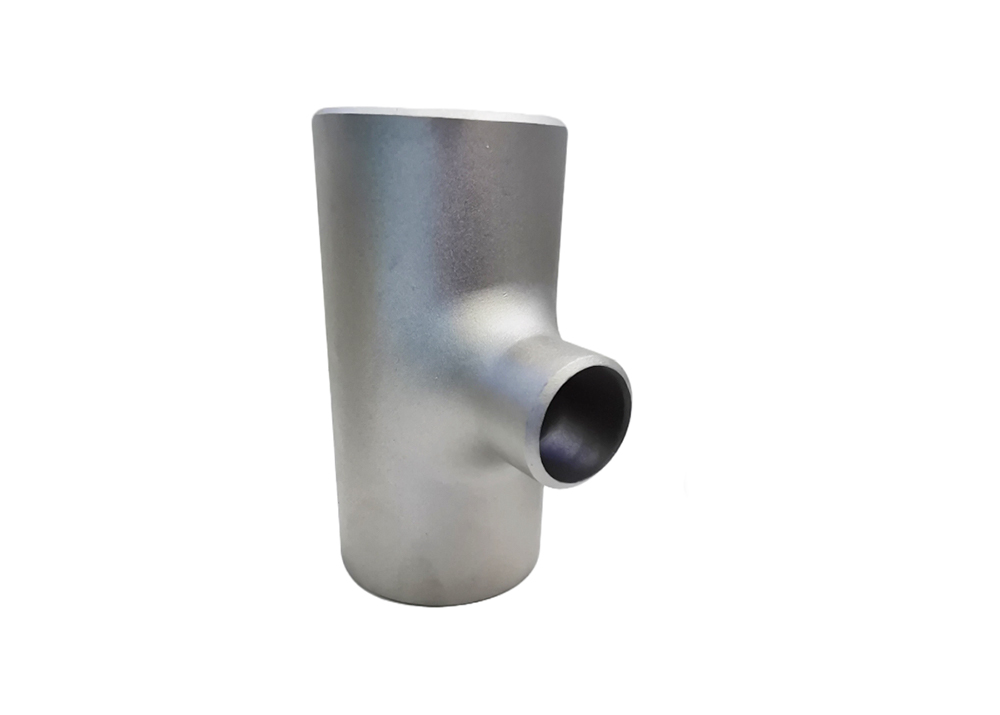

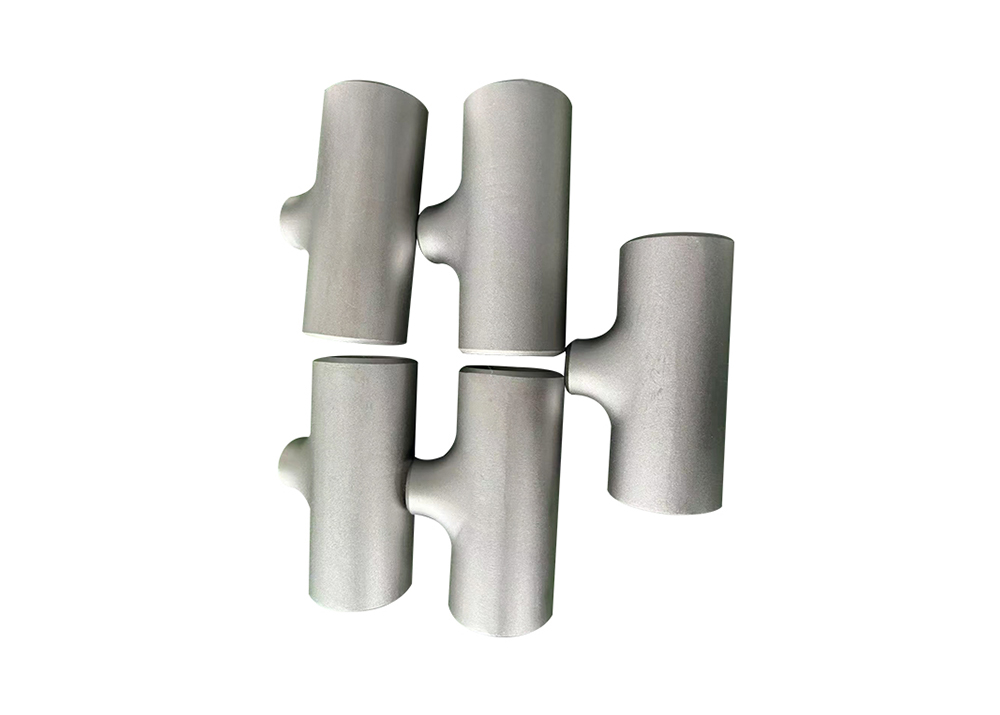

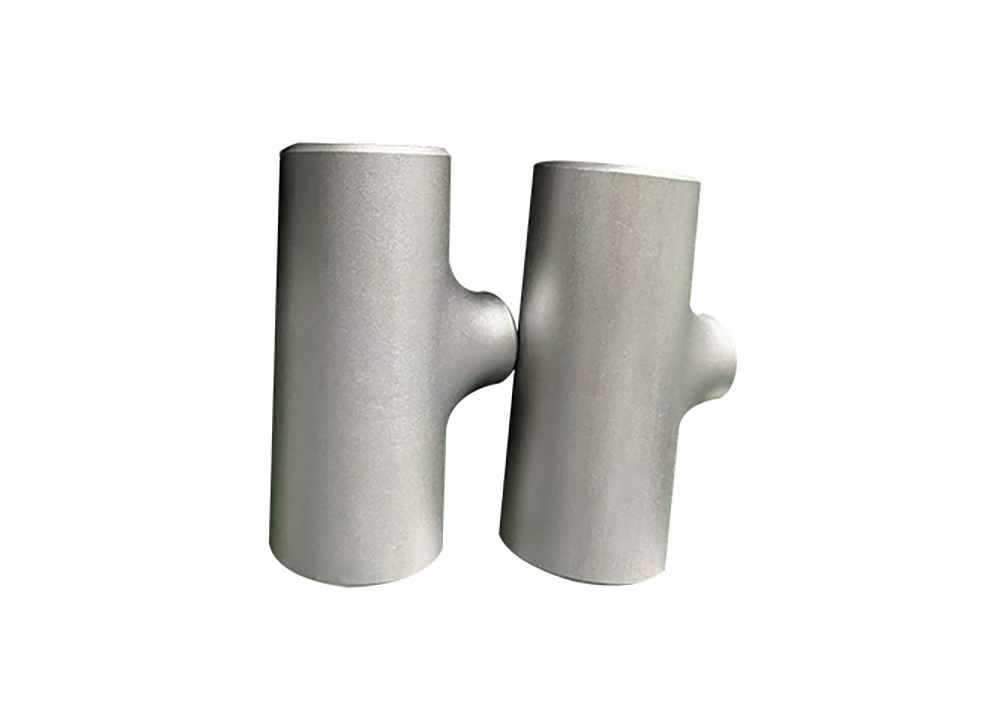

Titanium reducing tee with three openings, typically used at the branches of main pipelines to change the direction of fluid flow. It can be used in various situations where three identical or different pipelines need to converge, and it comes in T-shaped and Y-shaped, with multiple types. During the manufacturing process, titanium tees usually adopt specific techniques to ensure they have good sealing performance and structural strength.
Titanium pipe equal tee has excellent corrosion resistance in various media, and they are characterized by low density, high strength, smooth surface and no dirt. Therefore, they are widely used in various industrial fields.
Titanium pipe fitting reducing tee selection and usage must be determined by specific application scenarios and requirements; pipe diameter, working pressure, and medium characteristics must be considered.
Tube reducing tee pipe fittings specifications cover all size, and also support non-standard customization accordingly to customer’s requirements or drawings. Our titanium reducing tee are manufactured critically to the exact standard, including ASME B16.9，GB/T27684-2011 international standards to meet different requirements from the customers worldwide.
|
Standard |
ASTM B16.9，GB/T27684-2011 |
|
Material Designation |
TA1/TA2/TA9/TA10/GR1/GR2/GR7/GR12/N5/N6 etc |
|
Size |
DN15×15×10-DN125×125×80 |
|
OEM & ODM |
Available |
|
Surface Finish |
Shot blasting, Sand blasting |
|
Technics |
Welding, Seamless |
|
Type |
Titanium Reducing Tee |
|
Packaging |
Export Standard Wooden case, or can be customized |
|
Application |
Chemistry, petrochemicals and general industries: electrolytic cells, reactors, distillation towers, concentrators, separators, heat exchangers, pipelines, electrodes, etc. in chlor-alkali, soda ash, plastics, petrochemicals, metallurgy, salt production and other industries. Marine engineering: pipelines for seawater desalination, pumps, valves, pipe fittings for offshore oil drilling, etc |
|

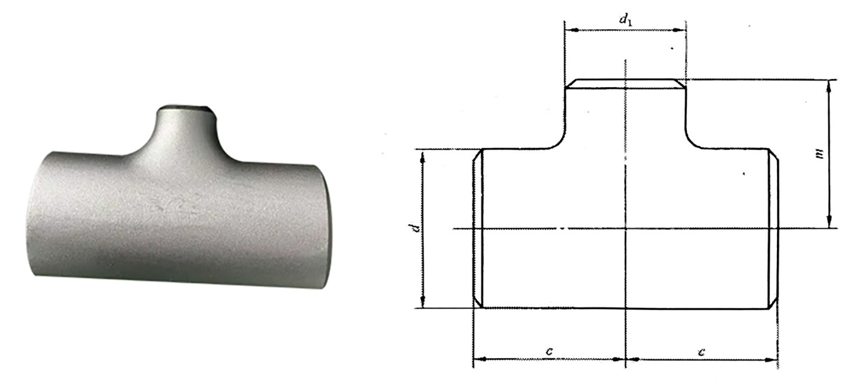

Nominal diameter |
Outside diameter at bevel d |
Center to end |
||||
|
Tube pass T |
Exit M |
Tube pass C |
Exit M |
|||
|
I series |
ⅡSeries |
I series |
ⅡSeries |
|||
|
15X15X10 |
21.3 |
18 |
17.3 |
14 |
25 |
25 |
|
15X15X8 |
21.3 |
18 |
13.7 |
10 |
25 |
25 |
|
20X20X15 |
26.7 |
25 |
21.3 |
18 |
29 |
29 |
|
20X20X10 |
26.7 |
25 |
17.3 |
14 |
29 |
29 |
|
25X25X20 |
33.4 |
32 |
26.7 |
25 |
38 |
38 |
|
25X25X15 |
33.4 |
32 |
21.3 |
18 |
38 |
38 |
|
32X32X25 |
42.2 |
38 |
33.4 |
32 |
48 |
48 |
|
32X32X20 |
42.2 |
38 |
26.7 |
25 |
48 |
48 |
|
32X32X15 |
42.2 |
38 |
21.3 |
18 |
48 |
48 |
|
40X40X32 |
48.3 |
45 |
42.2 |
38 |
57 |
57 |
|
40X40X25 |
48.3 |
45 |
33.4 |
32 |
57 |
57 |
|
40X40X20 |
48. 3 |
45 |
26.7 |
25 |
57 |
57 |
|
40X40X15 |
48.3 |
45 |
21.3 |
18 |
57 |
57 |
|
50X50X40 |
60.3 |
57 |
48.3 |
45 |
64 |
60 |
|
50X50X32 |
60. 3 |
57 |
42.2 |
38 |
64 |
57 |
|
50X50X25 |
60.3 |
57 |
33.4 |
32 |
64 |
51 |
|
50X50X20 |
60.3 |
57 |
26.7 |
25 |
64 |
44 |
|
65X65X50 |
73.0 |
76 |
60.3 |
57 |
76 |
70 |
|
65X65X40 |
73.0 |
76 |
48.3 |
45 |
76 |
67 |
|
65X65X32 |
73.0 |
76 |
42.2 |
38 |
76 |
64 |
|
65X65 X25 |
73.0 |
76 |
33.4 |
32 |
76 |
57 |
|
80X80X65 |
88.9 |
89 |
73.0 |
76 |
86 |
83 |
|
80X80X50 |
88.9 |
89 |
60.3 |
57 |
86 |
76 |
|
80X80X40 |
88.9 |
89 |
48.3 |
45 |
86 |
73 |
|
80X80X32 |
88.9 |
89 |
42.2 |
38 |
86 |
70 |
|
90X90X80 |
101.6 |
———— |
88.9 |
———— |
95 |
92 |
|
90X90X65 |
101.6 |
———— |
73.0 |
———— |
95 |
89 |
|
90X90X50 |
101.6 |
———— |
60.3 |
———— |
95 |
83 |
|
90X90X40 |
101.6 |
———— |
48.3 |
———— |
95 |
79 |
|
100X100X90 |
114.3 |
———— |
101.6 |
———— |
105 |
102 |
|
100X100X80 |
114.3 |
108 |
88.9 |
89 |
105 |
98 |
|
100X100X65 |
114.3 |
108 |
73.0 |
76 |
105 |
95 |
|
100X100X50 |
114.3 |
108 |
60.3 |
57 |
105 |
89 |
|
100X100X40 |
114.3 |
108 |
48.3 |
45 |
105 |
86 |
|
125X125X100 |
141.3 |
133 |
114.3 |
108 |
124 |
117 |
|
125X125X90 |
141.3 |
———— |
101.6 |
———— |
124 |
114 |
|
125X125X80 |
141.3 |
133 |
88.9 |
89 |
124 |
111 |
