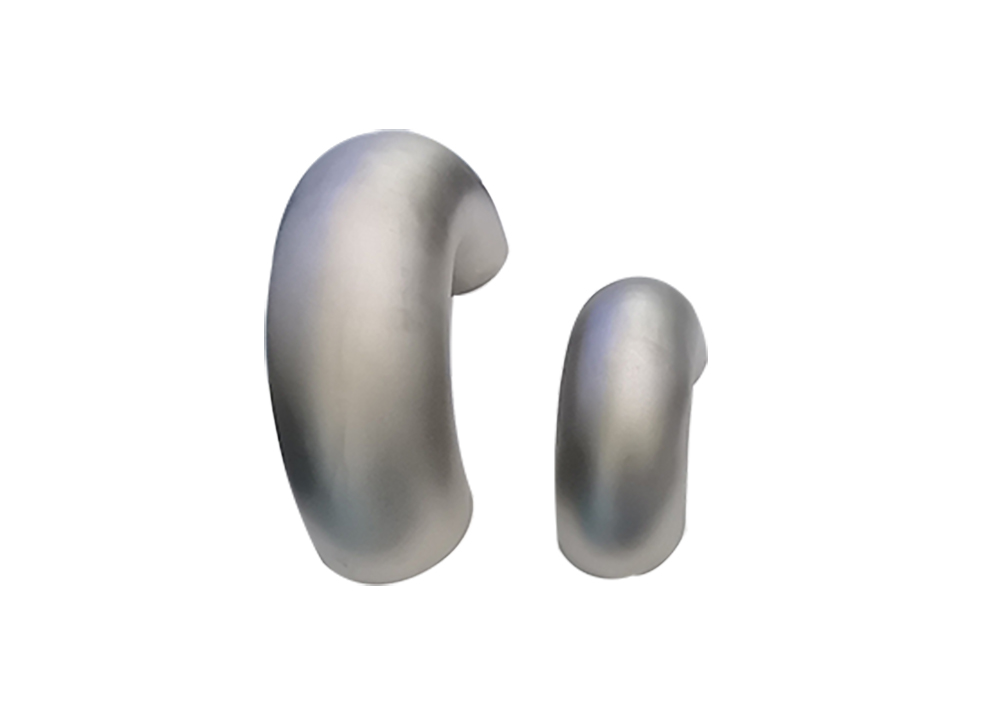

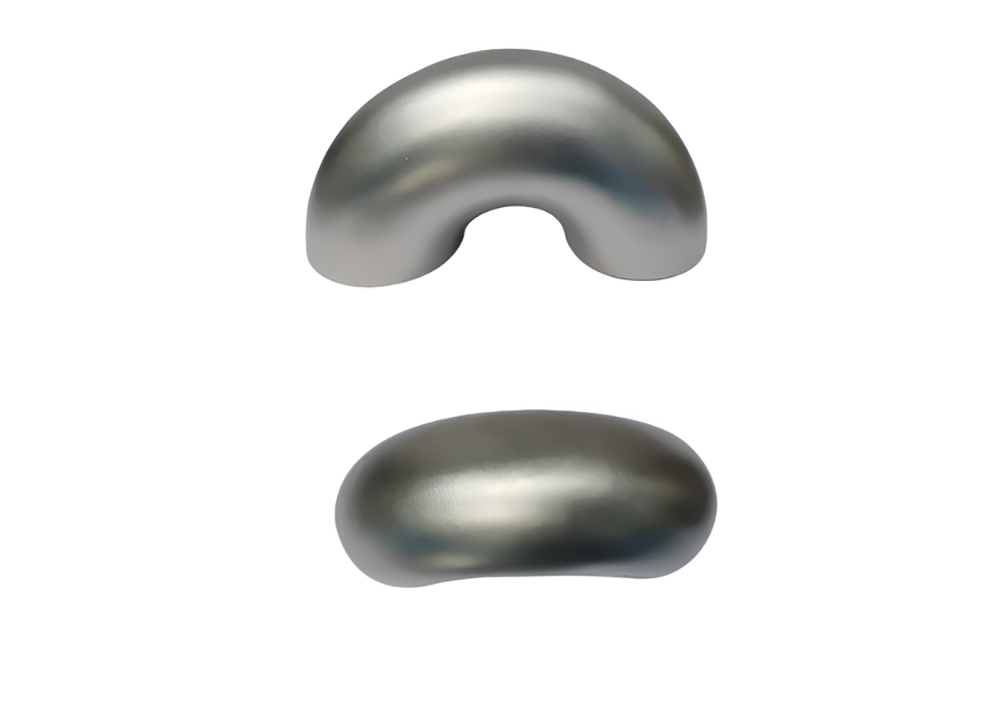

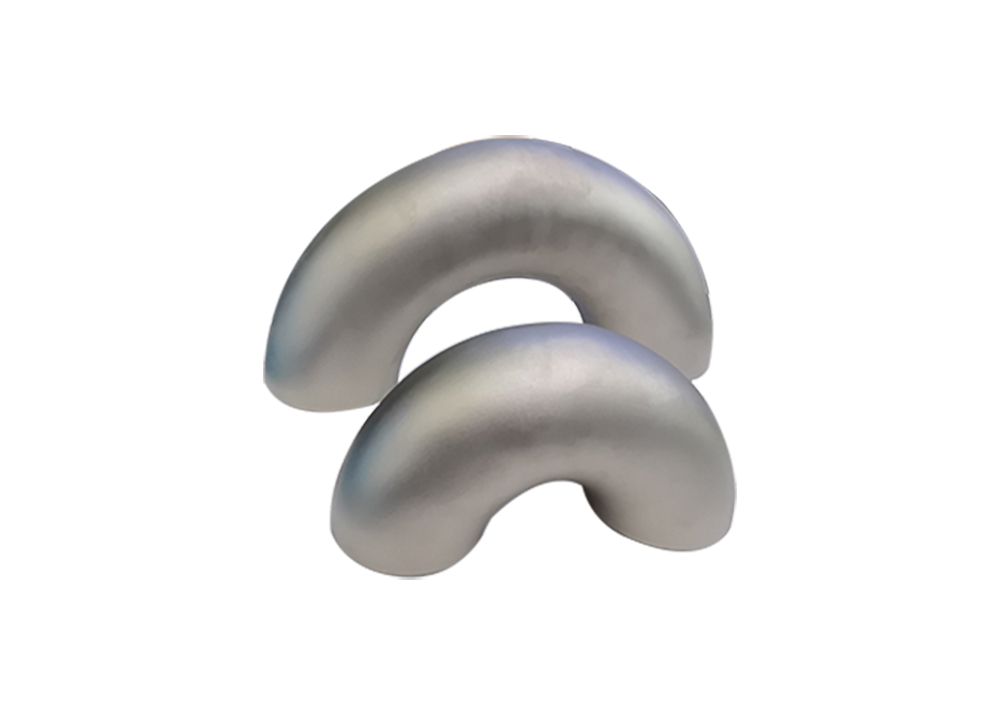

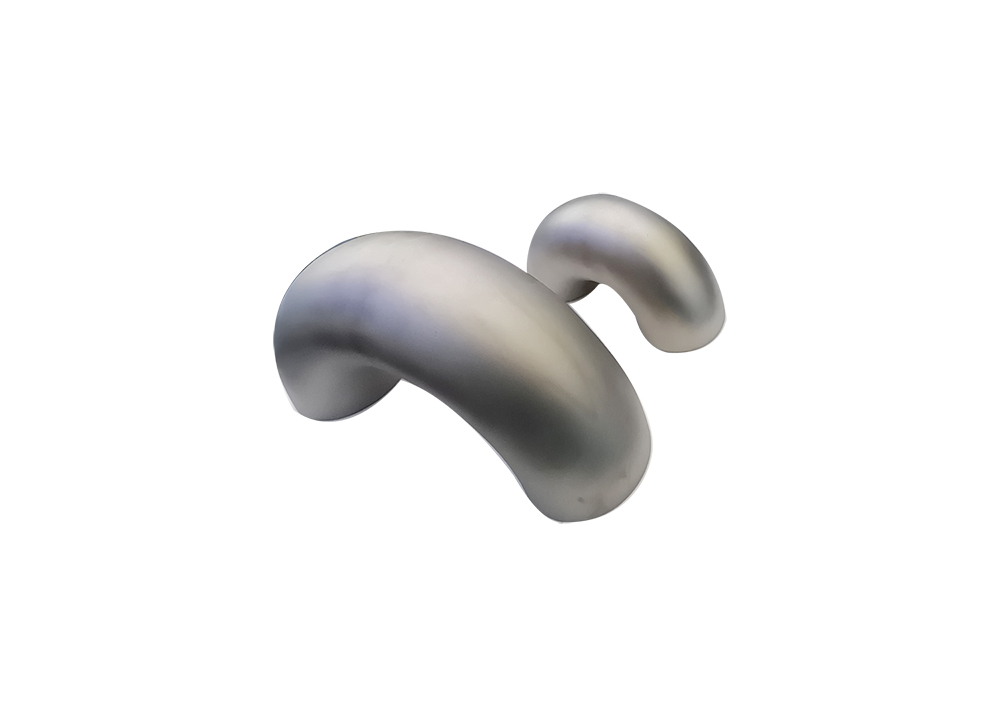

Titanium 180 degree elbow is commonly used connecting pipe fittings in pipeline systems and indispensable components.They can change the flow direction and direction of fluids. It has characteristics such as corrosion resistance and high-temperature resistance.
Titanium long radius 180 degree elbows are widely used in high-demand fields such as chemical engineering, petroleum, and power. In chemical equipment, its corrosion resistance can resist the erosion of acid and alkali media, ensuring the long-term stable operation of pipelines. On offshore platforms, its resistance to seawater corrosion extends the service life of equipment.
Titanium 180° pipe fittings are made of titanium material has the advantages of high strength, corrosion resistance and lightweight. It has excellent corrosion resistance in extreme environments such as acids, alkalis and seawater, and its service life is far longer than that of traditional materials. The high-temperature resistance property broadens the applicability to extreme working conditions, comprehensively reduces maintenance costs, and enhances system reliability.
Long radius titanium elbow pipe fittings specifications cover DN15-DN600, and also support non-standard customization accordingly to customer’s requirements or drawings. Our titanium 180 ° elbow pipe fittings are manufactured critically to the exact standard, including ASME B16.9，GB/T27684-2011 international standards to meet different requirements from the customers worldwide.
|
Standard |
ASME B16.9，GB/T27684-2011 |
|
Material Designation |
TA1/TA2/TA9/TA10/GR1/GR2/GR7/GR12/N5/N6 etc |
|
Size |
DN15-DN600 |
|
OEM/ODM |
Available |
|
Titanium Surface Finish |
Shot blasting, Sand blasting |
|
Technics |
Welding, Seamless |
|
Type |
Titanium 180 Degree Elbow |
|
Packaging |
Export Standard Wooden case, or can be customized |
|
Application |
Chemistry, petrochemicals and general industries: electrolytic cells, reactors, distillation towers, concentrators, separators, heat exchangers, pipelines, electrodes, etc. in chlor-alkali, soda ash, plastics, petrochemicals, metallurgy, salt production and other industries. Marine engineering: pipelines for seawater desalination, pumps, valves, pipe fittings for offshore oil drilling, etc |
(mm)
|
Nominal Diameter |
Outside diameter at bevel |
center to center |
Back to end |
|||||
|
Major radius |
Short radius |
|||||||
|
ⅠSeries |
ⅡSeries |
Major radius |
Short radius |
ⅠSeries |
ⅡSeries |
ⅠSeries |
ⅡSeries |
|
|
15 |
21.3 |
18 |
76 |
— |
48 |
47 |
— |
— |
|
20 |
26.7 |
25 |
76 |
— |
51 |
51 |
— |
— |
|
25 |
33.4 |
32 |
76 |
51 |
56 |
54 |
41 |
41 |
|
32 |
42.2 |
38 |
95 |
64 |
70 |
67 |
52 |
51 |
|
40 |
48.3 |
45 |
114 |
76 |
83 |
80 |
62 |
61 |
|
50 |
60.3 |
57 |
152 |
102 |
106 |
105 |
81 |
79 |
|
65 |
73.0 |
76 |
190 |
127 |
132 |
133 |
100 |
102 |
|
80 |
88.9 |
89 |
229 |
152 |
159 |
159 |
121 |
121 |
|
90 |
101.6 |
— |
267 |
178 |
184 |
— |
140 |
— |
|
100 |
114.3 |
108 |
305 |
203 |
210 |
206 |
159 |
156 |
|
125 |
141.3 |
133 |
381 |
254 |
262 |
257 |
197 |
194 |
|
150 |
168.3 |
159 |
457 |
305 |
313 |
308 |
237 |
232 |
|
200 |
219.1 |
219 |
610 |
406 |
414 |
414 |
313 |
313 |
|
250 |
273.0 |
273 |
762 |
508 |
518 |
518 |
391 |
391 |
|
300 |
323.8 |
325 |
914 |
610 |
619 |
620 |
467 |
467 |
|
350 |
355.6 |
377 |
1 067 |
711 |
711 |
722 |
533 |
544 |
|
400 |
406.4 |
426 |
1 219 |
813 |
813 |
823 |
610 |
619 |
|
450 |
457 |
480 |
1 372 |
914 |
914 |
925 |
686 |
697 |
|
500 |
508 |
530 |
1 524 |
1 016 |
1 016 |
1 026 |
762 |
773 |
|
550 |
559 |
— |
1 676 |
1 118 |
1 118 |
— |
838 |
— |
|
600 |
610 |
630 |
1 829 |
1 219 |
1 219 |
1 229 |
914 |
925 |
Titanium pipe fittings are tubular connecting parts mainly made of titanium and titanium alloys. Titanium metal
itself has the characteristics of low density, high specific strength, strong corrosion resistance and excellent
biocompatibility, which enables titanium pipe fittings to maintain stable performance even in extreme
environments. Titanium pipe fittings can demonstrate extraordinary reliability in fields such as the chemical industry,
Marine engineering, the petroleum industry, and the automotive industry.
