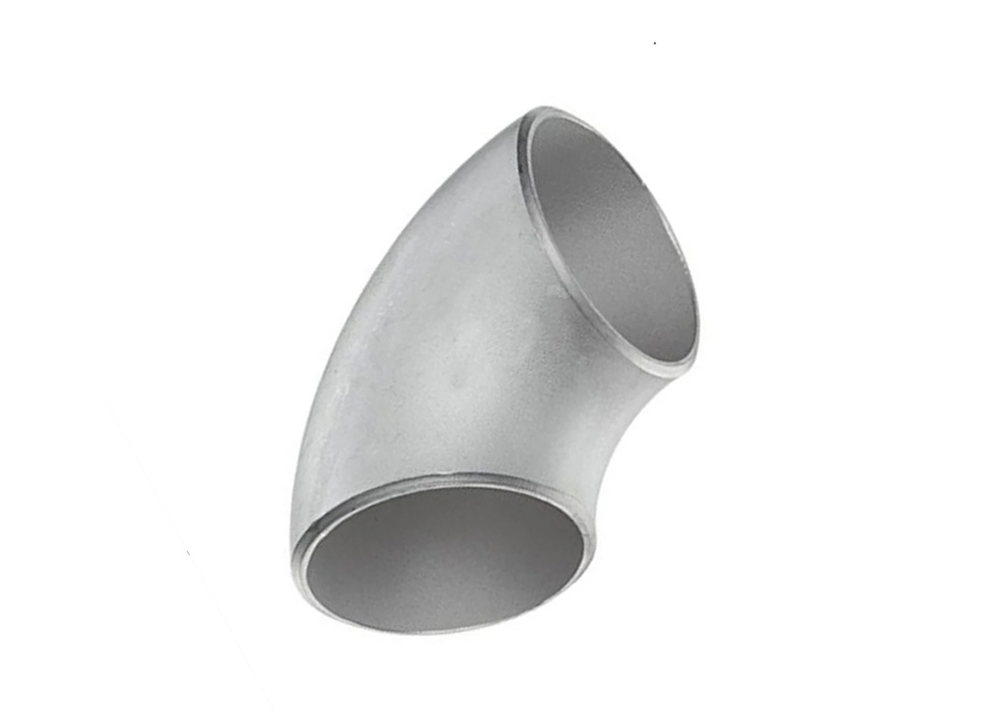

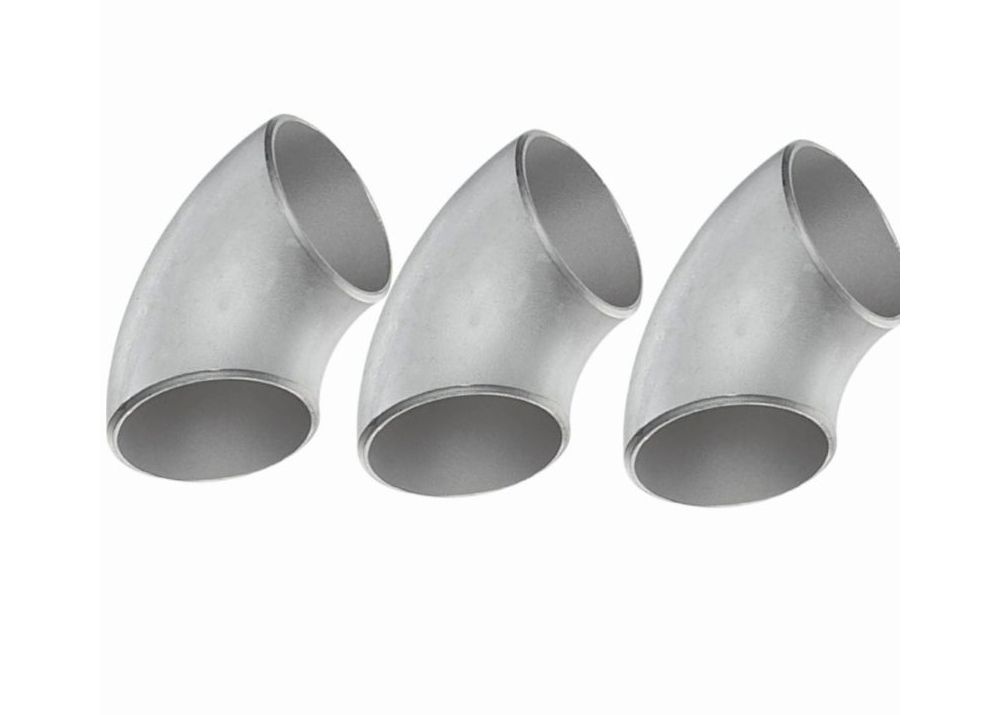

Titanium 45 degree elbow has excellent corrosion resistance in various media, and they are characterized by low density, high strength, smooth surface and no dirt. Therefore, they are widely used in various industrial fields.
Titanium 45 degree elbow selection and usage must be determined by specific application scenarios and requirements; pipe diameter, working pressure, and medium characteristics must be considered.
Titanium 45 ° elbow pipe fittings specifications cover all size, and also support non-standard customization accordingly to customer’s requirements or drawings. Our titanium reducing tee are manufactured critically to the exact standard, including ASME ，GB/T international standards to meet different requirements from the customers worldwide.
|
Standard |
ANSI,ASME,DIN,JIS,GB/T |
|
Material Designation |
TA1/TA2/TA9/TA10/GR1/GR2/GR7/GR12/N5/N6 etc |
|
Size |
DN15-DN1200 |
|
OEM/ODM |
Available |
|
Titanium Surface Finish |
Shot blasting, Sand blasting |
|
Technics |
Welding, Seamless |
|
Type |
Titanium 45 Degree Elbow |
|
Packaging |
Export Standard Wooden case, or can be customized |
|
Application |
Chemistry, petrochemicals and general industries: electrolytic cells, reactors, distillation towers, concentrators, separators, heat exchangers, pipelines, electrodes, etc. in chlor-alkali, soda ash, plastics, petrochemicals, metallurgy, salt production and other industries. Marine engineering: pipelines for seawater desalination, pumps, valves, pipe fittings for offshore oil drilling, etc |

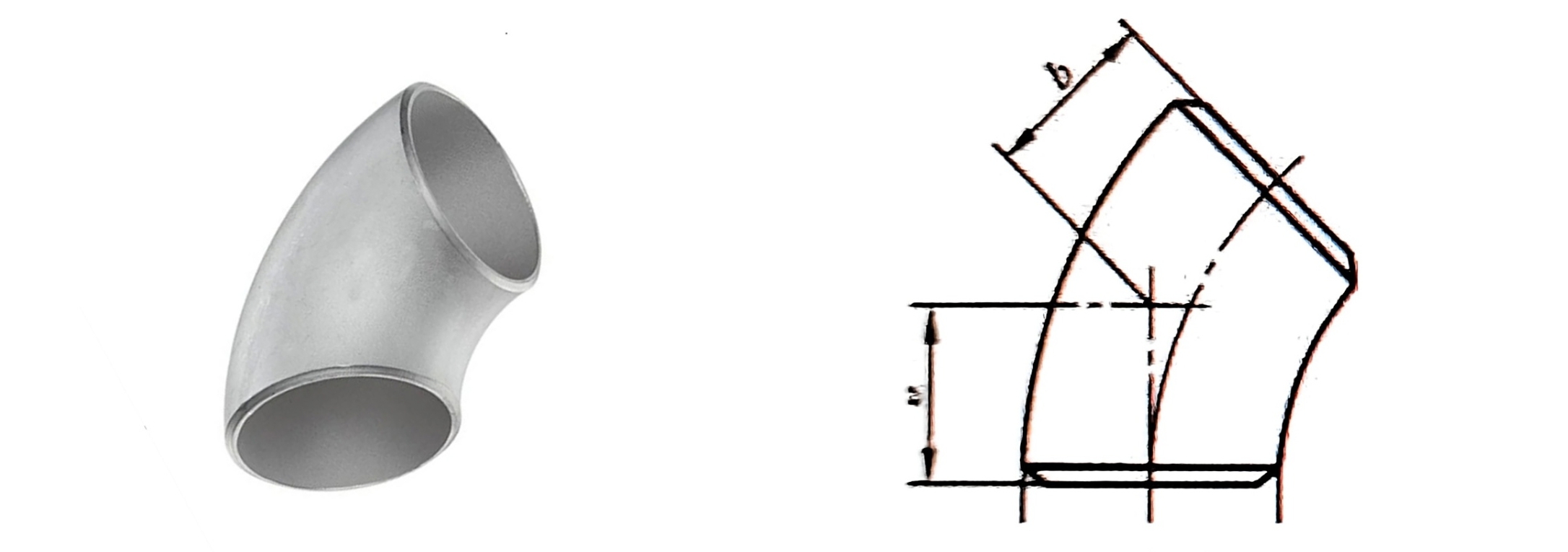

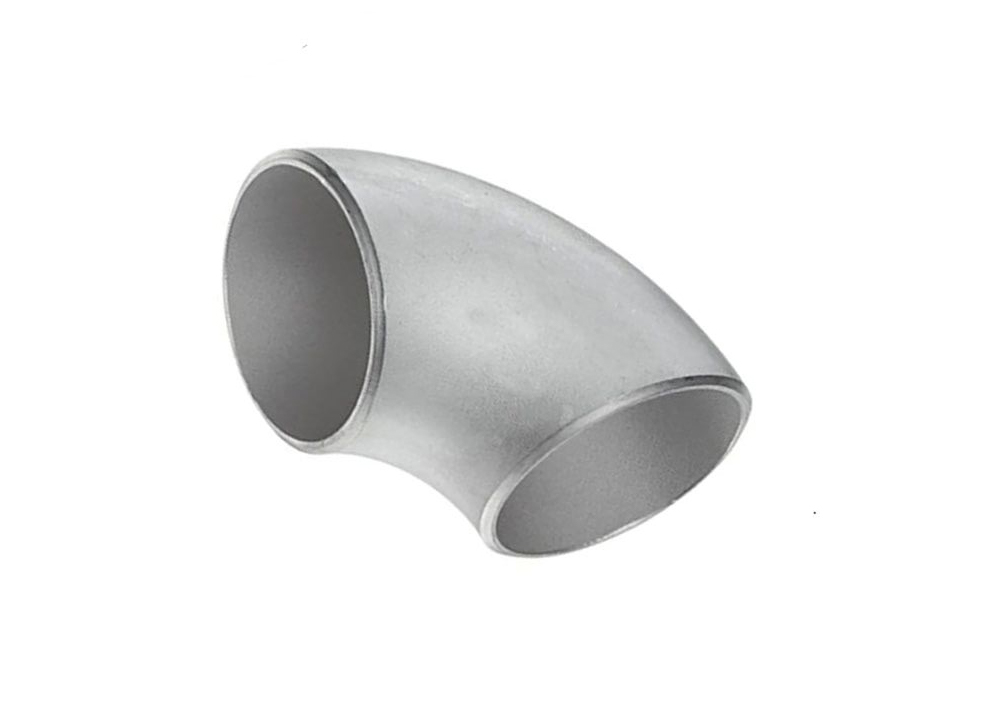

（mm）
|
Nominal size |
Outside diameter at bevel |
Center to end |
|||
|
45° elbow |
90° elbow |
||||
|
I Series |
II Series |
Major radius |
Major radius |
Short radius |
|
|
15 |
21.3 |
18 |
16 |
38 |
——— |
|
20 |
26.7 |
25 |
19 |
38 |
——— |
|
25 |
33.4 |
32 |
22 |
38 |
25 |
|
32 |
42.2 |
38 |
25 |
48 |
32 |
|
40 |
48.3 |
45 |
29 |
57 |
38 |
|
50 |
60.3 |
57 |
35 |
76 |
51 |
|
65 |
73.0 |
76 |
44 |
95 |
64 |
|
80 |
88.9 |
89 |
51 |
114 |
76 |
|
90 |
101.6 |
57 |
133 |
89 |
|
|
100 |
114.3 |
108 |
64 |
152 |
102 |
|
125 |
141.3 |
133 |
79 |
190 |
127 |
|
150 |
168.3 |
159 |
95 |
229 |
152 |
|
200 |
219.1 |
219 |
127 |
305 |
203 |
|
250 |
273.0 |
273 |
159 |
381 |
254 |
|
300 |
323.8 |
325 |
190 |
457 |
305 |
|
350 |
355.6 |
377 |
222 |
533 |
356 |
|
400 |
406.4 |
426 |
254 |
610 |
406 |
|
450 |
457 |
480 |
286 |
686 |
457 |
|
500 |
508 |
530 |
318 |
762 |
508 |
|
550 |
559 |
——— |
343 |
838 |
559 |
|
600 |
610 |
630 |
381 |
914 |
610 |
|
650 |
660 |
——— |
406 |
991 |
——— |
|
700 |
711 |
720 |
438 |
1 067 |
——— |
|
750 |
762 |
——— |
470 |
1 143 |
——— |
|
800 |
813 |
820 |
502 |
1 219 |
——— |
|
850 |
864 |
——— |
533 |
1 295 |
——— |
|
900 |
914 |
920 |
565 |
1 372 |
——— |
|
950 |
965 |
——— |
600 |
1 448 |
——— |
|
1 000 |
1 016 |
1 020 |
632 |
1 524 |
——— |
|
1 050 |
1 067 |
——— |
660 |
1 600 |
——— |
|
1 100 |
1 118 |
1 120 |
695 |
1 676 |
——— |
|
1 150 |
1 168 |
——— |
727 |
1 753 |
——— |
|
1 200 |
1 219 |
1 220 |
759 |
1 829 |
——— |
