The Titanium Flange Family: How Six Key Members Shoulder Their Responsibilities

In modern industrial piping systems, flanges are everywhere—they act like a "handshake" between pipes, tightly connecting two separate components. Titanium flanges, with their lightweight, corrosion-resistant, and non-magnetic properties, excel in industries such as chemical processing, marine engineering, and aerospace. However, titanium flanges are not a one-size-fits-all solution; different structures suit different "jobs."

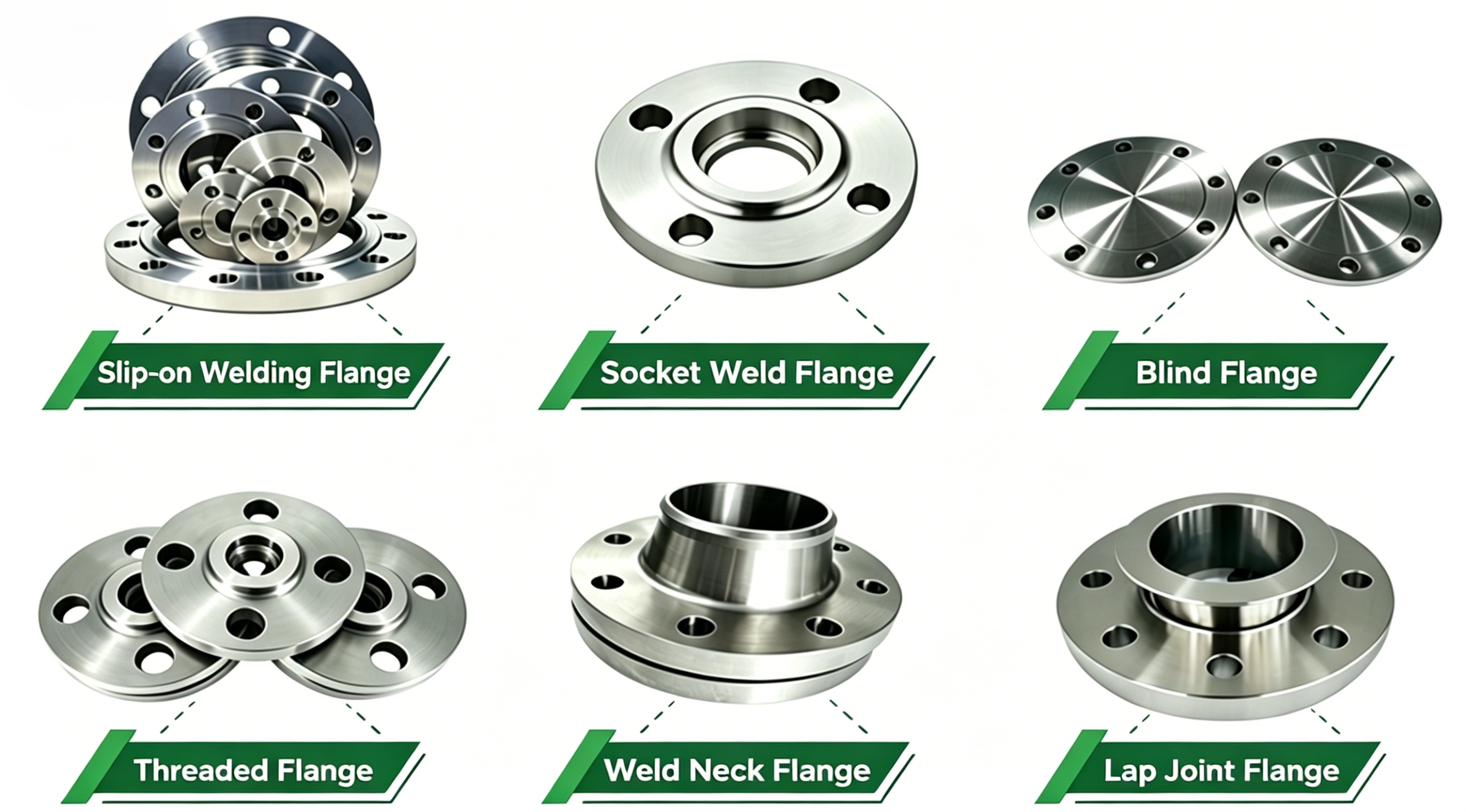

Today, we’ll get to know six core members of the titanium flange family.

1.Slip-On Flange: The Cost-Saver for Medium/Low-Pressure Systems

Appearance: No tapered neck; simple structure. The pipe is inserted into the flange bore and welded with fillet welds on both the inside and outside.
Why this design: Eliminates the complex tapered neck, making it simpler and cheaper to manufacture, and easier to align during on-site welding.
Strengths: Medium/low-pressure pipelines (≤ 4.0 MPa), general industrial corrosive media (e.g., chlorine, alkali, sulfuric acid, nitric acid), applications with less stringent sealing requirements.
Note: Lower rigidity; not suitable for high temperatures, high pressures, or severe vibration.
In a nutshell: The best value for money—ideal for medium/low-pressure conditions.

2.Socket Weld Flange: The Precision Welder for Small-Bore, High-Pressure Scenarios

Appearance: One end of the flange has a counterbore; the pipe is inserted into the bore and welded with a single fillet weld on the outside.
Why this design: The close fit between pipe and flange bore ensures weld quality and neatness, ideal for small diameters (DN ≤ 40) in medium/high-pressure systems.
Strengths: Small-bore high-pressure pipelines; industries with high cleanliness requirements (e.g., pharmaceuticals, food); boiler and pressure vessel piping.
In a nutshell: Small in size, big in performance—a great partner for high-purity environments.

3.Blind Flange: The Terminator at Pipe Ends

Appearance: A solid disk with no central opening, like a "cap" placed over the pipe end.
Why this design: Its job is not to connect two pipes but to seal dead ends—used to block pipe ends or equipment access ports, capable of withstanding the full design pressure of the pipeline.
Strengths: Permanent sealing of pipe ends; access ports on pressure vessels; temporary isolation of piping systems (removable when needed).
In a nutshell: Where the pipe ends, the blind flange has the final say.

4.Threaded Flange: The Emergency Option When Welding Is Prohibited

Appearance: The flange bore is machined with pipe threads, allowing it to be screwed directly onto a threaded pipe.
Why this design: Requires no welding at all—a crucial solution in situations like chemical plants with strict hot-work restrictions or with alloys that are difficult to weld.
Strengths: Low-pressure, small-diameter pipelines; locations where welding is banned; temporary lines or connections needing easy disassembly.
Note: Prone to leakage under剧烈 temperature changes; not recommended for use above 260°C or below -45°C.
In a nutshell: No welding, removable—but handle temperature changes gently.

5.Weld Neck Flange: The Anchor for High-Pressure Conditions

Appearance: Features a long tapered neck between the flange and the pipe, like an extended neck, with wall thickness gradually transitioning from thick to thin, smoothly blending into the pipe wall.
Why this design: Welded joints are often where stress concentrates, leading to fatigue failure. The tapered neck acts as a "buffer," smoothly transferring force from the flange to the pipe, significantly reducing stress concentration.
Strengths: High-pressure pipelines (PN ≥ 10.0 MPa), high-temperature environments (450–600°C), applications with剧烈 pressure/temperature fluctuations, and low-temperature pipelines (e.g., liquid oxygen/hydrogen transport).
Typical applications: Combustion chamber connections in aero-engines, high-pressure valve flanges in deep-sea Christmas trees, reactor interfaces in petrochemical cracking units.
In a nutshell: Where conditions are toughest, the weld neck flange steps up.

6.Lap Joint Flange: The Disassembly Expert for Maintenance Scenarios

Appearance: A two-piece assembly—a freely rotatable flange ring plus a "stub end" (also called a lap joint stub) welded to the pipe end.
Why this design: The flange ring is not directly welded to the pipe, allowing free rotation and flexible bolt-hole alignment during disassembly/reassembly. Even better, the flange ring and pipe can be made of different materials—corrosion-resistant titanium for the pipe,普通 steel for the ring—significantly reducing costs.
Strengths: Pipelines requiring frequent disassembly/maintenance, lined pipes (e.g., PTFE-lined), applications aiming to minimize titanium usage.
In a nutshell: It puts titanium where it matters and saves money on materials.

7.Beyond Just "Choosing the Right Structure"—Three Key Factors for Titanium Flange Selection

Selecting the correct flange type is only the first step. In practical engineering, three additional dimensions must be considered:

Material：

• Highly corrosive environments: TA9 (titanium-palladium alloy) or Grade 7, offering better crevice corrosion resistance.
• High-temperature/high-pressure applications: TC4 titanium alloy (Ti-6Al-4V), maintaining strength stability up to 600°C.
• General seawater or low-corrosion environments: TA1/TA2 commercially pure titanium, the most cost-effective choice.

Sealing Face：

• Raised Face (RF): Most versatile, suitable for medium/low pressures.
• Male/Female Face (MFM): Better sealing, ideal for high pressure or vibration.
• Tongue & Groove Face (TG): For flammable, explosive, or toxic media.
• Ring Joint Face (RTJ): Specifically for ultra-high-pressure systems (Class 900 and above).

Manufacturing Quality：

• Ultra-high-pressure scenarios require Grade III forgings and rigorous inspection (e.g., ultrasonic testing).

8.Summary

The titanium flange family members each have their strengths:

• Weld Neck handles high pressure.
• Slip-On saves costs.
• Lap Joint enables quick disassembly.
• Threaded avoids welding.
• Blind terminates pipe ends.
• Socket Weld excels at small-bore, high-purity tasks.

Though they may seem like just six types of "bolted disks," each plays a distinct role on different industrial battlefields. Choosing the right structure allows titanium's natural talents to shine to their fullest.
