3D Printed Titanium Bone: When Metal Grows Into the Shape of Bone

Have you ever wondered: if a piece of bone is removed, how do you fill the gap?

In the past, doctors could only stuff a metal “cage” in there – cylindrical, standard‑sized, like a piece of industrial pipe. Whether it matched the contour of your bone or not was secondary – as long as it held things in place.

That approach worked for many years, more or less. But there were always those patients whose bone had been eaten away by a tumor, leaving a hole too irregular for a standard pipe. Or worse – places like the pelvis, shaped like an irregular bowl, with no off‑the‑shelf part available.That’s when 3D printed titanium alloy steps in.

Metal powder and a beam of light.

The process isn’t complicated: finely grind titanium alloy (commonly Ti6Al4V ELI powder, the extra‑low interstitial grade for medical use) and spread it in a machine. A laser scans layer by layer following a computer model. The powder melts instantly, then solidifies. One layer finished, another spread on top. A few hours later, a metal part that looks like deep‑sea coral is “grown.”

Why not solid?

Because solid titanium is too stiff. 3D printed titanium implants are deliberately made porous – for example, porosity controlled at 60–80% and pore size 300–800 microns – so that bone cells can crawl into the pores and settle there. This is “osseointegration”: titanium and bone are not just neighbors, they grow together.

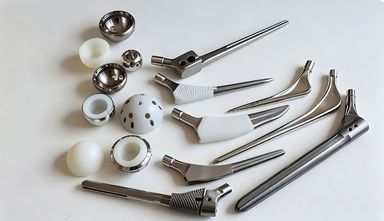

There are already mature product families on the market, such as titanium alloy artificial vertebral bodies for the spine, 3D printed acetabular cups, and custom titanium mesh for maxillofacial reconstruction. Take the acetabular cup – traditional off‑the‑shelf cups come in only a few sizes, while a 3D printed version can be custom‑designed from a patient’s CT data, with a micro‑porous surface that allows bone ingrowth, offering stability far superior to conventional cement fixation.

A real‑world example：

In 2013, a patient with a sacral tumor in Beijing had half of his pelvis removed. Surgeons first reconstructed the defect shape from CT scans, then designed a titanium alloy prosthesis that fit perfectly – not just similar, but perfectly matched. During surgery, the moment the implant was placed, it locked flush with the surrounding bone. That implant was made from Ti6Al4V ELI powder using electron beam melting (EBM) in a single build, requiring only minor post‑processing polishing.

Since then, the technique has spread. 3D printed artificial vertebral bodies after spinal tumor removal, custom acetabular augments for hip revision surgery, reconstruction plates for mandibular defects – all have started using this approach. Clinical data shows that 3D printed titanium interbody fusion cages reduce post‑operative subsidence from the 40‑50% seen with traditional titanium mesh cages to below 5%, with revision success rates approaching 100%.

What to look for in product specs.

If you are looking for such products, here are a few key points to check:

-Material: Medical‑grade Ti6Al4V ELI (ISO 5832‑3 standard), extremely low impurity levels.

- Porosity structure: Pore size 300‑600 microns, porosity 60‑80%. Triply periodic minimal surface (TPMS) designs promote better bone ingrowth than random porosity.

- Mechanical properties: As‑printed tensile strength ≥900 MPa; the elastic modulus of the porous structure can be tuned to 3‑10 GPa, close to cancellous bone.

- Post‑processing: Hot isostatic pressing (HIP) to relieve residual stress; micro‑arc oxidation (MAO) or alkali‑heat treatment to enhance hydrophilicity.

Of course, there are still limitations---expensive.

The price of a 3D printed titanium interbody fusion cage is several times that of a traditional titanium mesh cage. Also, even with a porous structure, titanium’s elastic modulus remains higher than natural bone, creating a risk of “stress shielding” over the long term. Engineers are addressing this with tantalum coatings and more sophisticated gradient porosity designs.

From “industrial pipes” to “custom‑made coral,” 3D printed titanium implants have come a long way in just over a decade. The essence is simple: letting metal learn to behave like bone – knowing where to be softer, where to be stiffer, and where to leave room for blood vessels to pass.Several brands have already received regulatory approval in China,such as Beijing AK Medical’s 3D ACT Acetabular System and Xi’an Diakun’s Spinal 3D Printed Fusion Cage. When a material begins to understand the body’s own logic, it is no longer just a “prosthesis.” It’s a tenant that moves in and never plans to leave.
