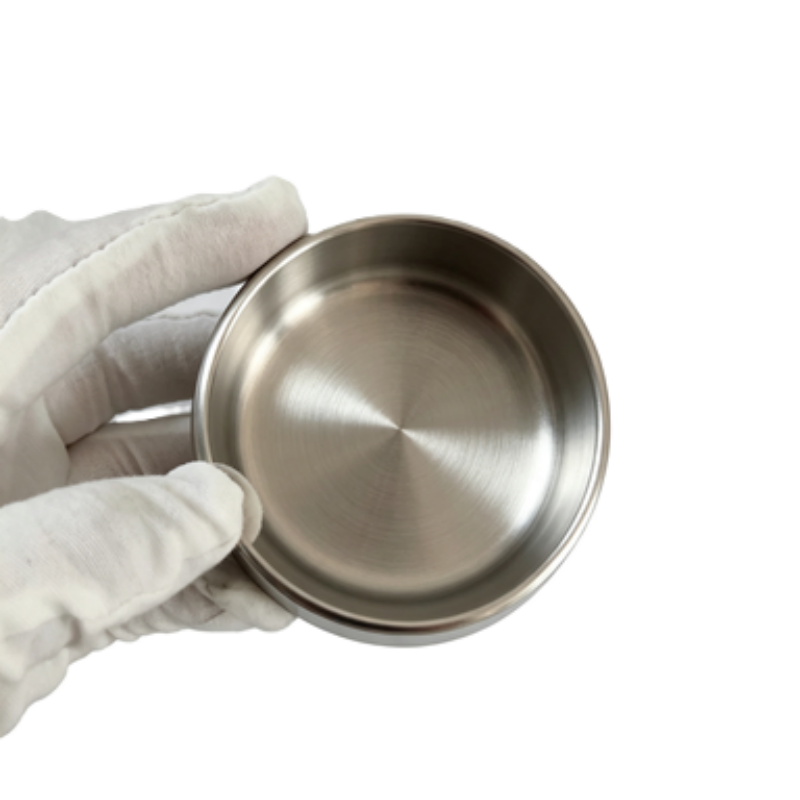

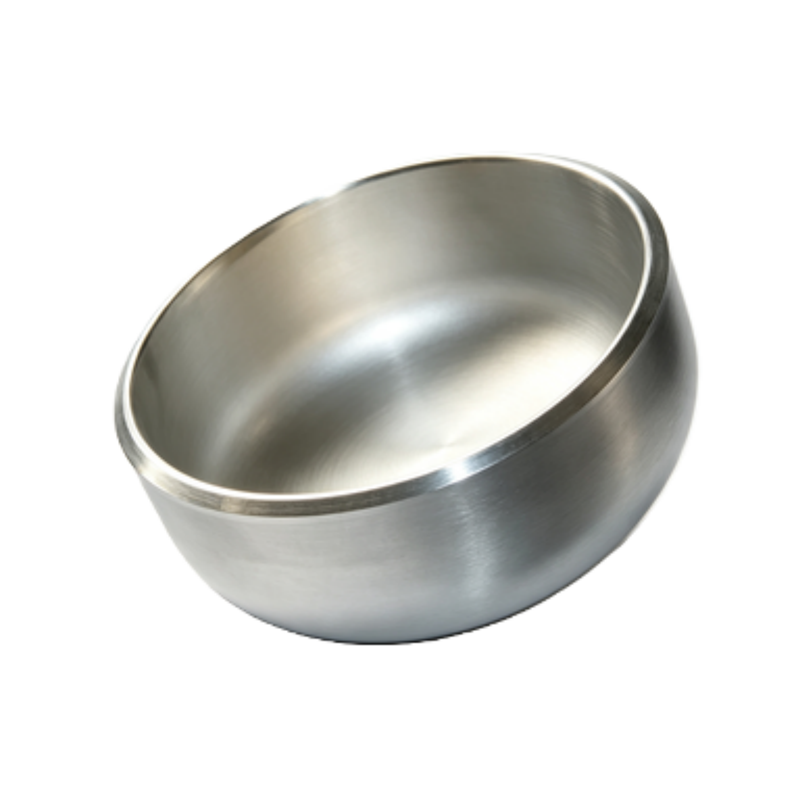

Our Titanium pipe caps (Titanium end caps) are manufactured from Grade 2 pure titanium or Grade 5 titanium alloy, complying with ASTM B363 standard. Mainly butt-weld type for pipeline end sealing. Featuring outstanding corrosion resistance against seawater, chloride, acid and alkali medium, non-magnetic property, stable performance under high and low temperature, good weldability. Surface finish options: as forged, pickled, polished. Widely used in chemical industry, seawater desalination, offshore, oil & gas, heat exchanger, aerospace, semiconductor and corrosive fluid piping systems. We support custom diameter, wall thickness and bulk wholesale, OEM available.
| Standard | GB/T17684-2011,ASME B 16.9,DIN,ISO,JIS |
| Material | TA1,TA2, Gr.1 BT1-00, Gr.1ELI, BT1-00CB,Gr.2 BT1-0 etc |
| Size | DN15-DN 1200 |
| OEM/ODM | Available |
| Titanium Surface Finish | Inner and Outer Surface Polishing |
| Technics | Welding/Casting/Forged |
| Type | Titanium Pipe End Cap |
| Packaging | Export standard wooden case, or can be customized |
| Application | Pharmaceutical Industry;Biotechnology & Biopharm;Food & Beverage Industry;Semiconductor & Electronics Industry;Chemical & Speciality Chemicals;Vehicle Exhaust System |

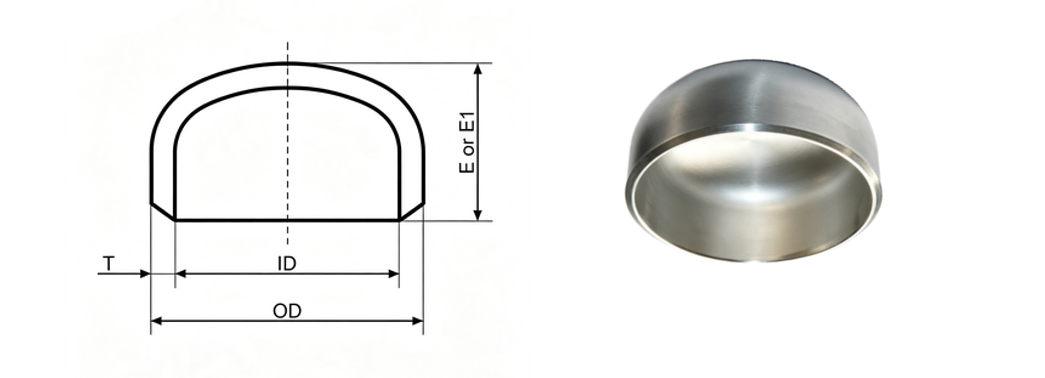

| Nominal Size DN |
Outside Diameter at Bevel d (Series I) |
Outside Diameter at Bevel d (Series II) |
Length e |
Max. Wall Thickness for Length T |
Length e1 |
| 15 | 21.3 | 18 | 25 | 4.57 | 25 |
| 20 | 26.7 | 25 | 25 | 3.81 | 25 |
| 25 | 33.4 | 32 | 38 | 4.57 | 38 |
| 32 | 42.2 | 38 | 38 | 4.83 | 38 |
| 40 | 48.3 | 45 | 38 | 5.08 | 38 |
| 50 | 60.3 | 57 | 38 | 5.59 | 44 |
| 65 | 73 | 76 | 38 | 7.11 | 51 |
| 80 | 88.9 | 89 | 51 | 7.62 | 64 |
| 100 | 114.3 | 108 | 64 | 8.64 | 76 |
| 125 | 141.3 | 133 | 76 | 9.65 | 89 |
| 150 | 168.3 | 159 | 89 | 10.92 | 102 |
| 200 | 219.1 | 219 | 102 | 12.7 | 127 |
| 250 | 273 | 273 | 127 | 12.7 | 152 |
| 300 | 323.8 | 325 | 152 | 12.7 | 178 |
| 350 | 355.6 | 377 | 165 | 12.7 | 191 |
| 400 | 406.4 | 426 | 178 | 12.7 | 203 |
| 450 | 457 | 480 | 203 | 12.7 | 229 |
| 500 | 508 | 530 | 229 | 12.7 | 254 |
| 600 | 610 | 630 | 267 | 12.7 | 305 |
| 700 | 711 | 720 | 267 | - | - |
| 800 | 813 | 820 | 267 | - | - |
| 820 | 864 | - | 267 | - | - |
| 900 | 914 | 920 | 267 | - | - |
| 1000 | 1016 | 1020 | 305 | - | - |
| 1100 | 1118 | 1120 | 343 | - | - |
| 1200 | 1219 | 1220 | 343 | - | - |
| For pipe caps DN600 and smaller, where the wall thickness is greater than the value in column "T", select dimensions from the length e1 column. | |||||
Titanium pipe fittings are tubular connecting parts mainly made of titanium and titanium alloys. Titanium metal
itself has the characteristics of low density, high specific strength, strong corrosion resistance and excellent
biocompatibility, which enables titanium pipe fittings to maintain stable performance even in extreme
environments. Titanium pipe fittings can demonstrate extraordinary reliability in fields such as the chemical industry,
Marine engineering, the petroleum industry, and the automotive industry.
