Titanium Forgings: Why “Hammered” Titanium Is More Reliable Than “Grown”

In titanium processing, there are three common methods: casting, forging, and 3D printing. Among these, forging is the oldest, yet it remains the most trusted choice in aerospace, medical, racing, and other high‑demand fields.

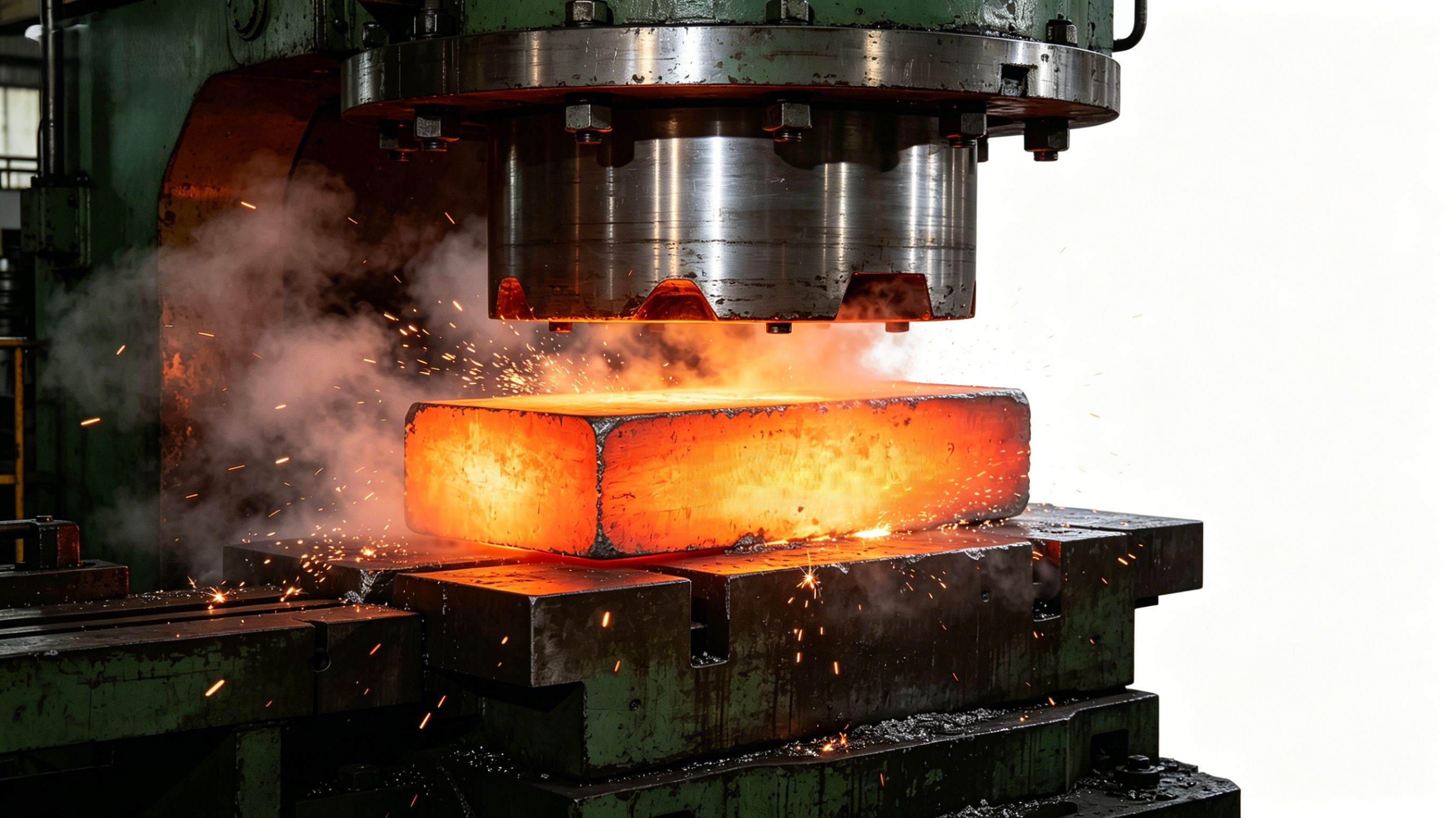

To put it simply: casting is “melt and pour,” 3D printing is “grow layer by layer,” and forging is “hammer while hot” – taking a red‑hot titanium billet and pounding it under thousands of tons of pressure to force it into shape.

Why such violence? Because this beating completely transforms titanium’s internal “character.”

What problem does forging solve?

Titanium alloys have two inherent weaknesses:

1. Non‑uniform microstructure Cast titanium forms coarse grains during cooling, and tends to have micro‑shrinkage pores and gas holes. These defects become starting points for cracks under load.
2. Anisotropy Cast titanium shows significant differences in mechanical properties depending on direction – weak when pulled transversely, strong longitudinally. For parts that experience complex loads (like landing gear or connecting rods), this is fatal. The core effect of forging is: break up coarse grains, close porosity, make the internal structure uniform and dense, and align the grains along the primary load direction. One sentence: Cast titanium is “raw ore with built‑in defects”; forged titanium is “thousands‑of‑times‑refined premium material.”

Three trump cards of forged parts

Trump card 1: Both high strength and toughness During forging, the internal grains are elongated and refined by mechanical deformation, creating a flow line structure. In the load direction, strength is 20‑50% higher than cast, with almost no loss in toughness.

Typical data (Ti‑6Al‑4V):

• Cast: tensile strength ~895 MPa, elongation 6‑8%
• Forged: tensile strength >1000 MPa, elongation 10‑15%

The real difference isn’t static strength – it’s fatigue life. Forged parts last 5‑10 times longer than cast parts under cyclic loading. That’s why aircraft landing gear must use forged titanium, not cast or 3D printed.

Trump card 2: No hidden “time bombs” Cast titanium inevitably contains micro‑shrinkage and porosity, sometimes undetectable even by X‑ray. Forging, however, applies such enormous pressure that these voids are literally squeezed shut – titanium atoms diffuse across the gaps at high temperature and pressure, achieving over 99.9% of theoretical density. In industry terms: forged parts can reach AA grade in non‑destructive inspection, while cast parts typically only manage B or C grade.

Trump card 3: Performance can be “directionally designed”

Forging isn’t just random hammering – it’s directional. Engineers control the deformation direction (called “forging flow lines”) to make the part strongest in the direction that matters most. The classic example is disc‑type parts (like turbine discs). The flow lines are oriented radially, so when the disc spins at high speed, the tensile strength in the centrifugal direction is maximised. Casting cannot achieve this directional reinforcement.

Three common forged titanium parts

1. Aircraft landing gear forks Landing gear must absorb tens of tons of impact during touchdown, and survive tens of thousands of cycles without fatigue failure. Mainstream airliners (Boeing 787, Airbus A350) use Ti‑10V‑2Fe‑3Al forged titanium for critical landing gear components. After forging, tensile strength exceeds 1200 MPa, with fracture toughness far superior to conventional steel.
2. Racing connecting rods / engine valves A high‑performance engine’s connecting rod experiences tens of thousands of tension‑compression cycles per second. A failure means a “block‑piercing” disaster. Forged titanium connecting rods (commonly Ti‑6Al‑4V) are 40% lighter than steel, with no loss in fatigue strength – meaning higher revs, or longer life at the same revs. F1 and top‑tier tuner rods are almost all forged titanium.
3. Medical joint prostheses (forged version) Many people think hip implants are cast or 3D printed – but the load‑bearing part (e.g., femoral stem) is actually precision forged. The stem must carry body weight and millions of walking cycles; cast fatigue risk is too high. Forged titanium stems (usually Ti‑6Al‑4V ELI) are dense and high‑strength inside, with a surface that can be grit‑blasted or plasma‑sprayed for bone ingrowth.

Forging is not magic: costs and limits

Forged titanium has clear downsides:

-Expensive: Requires presses of several thousand to over ten thousand tons; die costs are extremely high. For small batches (a few hundred pieces), the die amortisation can exceed the material cost.

-Shape limitations: Forging can only produce relatively simple shapes (discs, blocks, bars, rings). Complex cavities or undercuts require secondary machining.

-Low material utilisation: The billet must be cut to an approximate shape before forging, and flash trimmed afterwards. Material loss often exceeds 50%.

So the engineering trade‑off is clear:

-High volume + critical loads → Forging

-Complex shapes + low volume → 3D printing or precision casting

-Simple shape + very large size → Forging + welding

Practical selection guide

If you’re considering forged titanium parts, ask yourself three questions:

1. Will it see cyclic loading? Yes → forging first. No → casting or machined bar may work.
2. Is the volume large enough? 500+ parts per year makes forging cost‑effective. For a few dozen pieces, just buy titanium bar and machine it.
3. Are reliability requirements high? Aerospace, medical, racing → forging. General industrial, chemical → welded or cast may be acceptable.

Quick material reference:

-Ti‑6Al‑4V: General‑purpose, good strength/toughness balance – most structural forgings

-Ti‑10V‑2Fe‑3Al: Ultra‑high strength – landing gear, conrods

-Ti‑6Al‑2Sn‑4Zr‑2Mo: High‑temperature titanium – holds strength up to 500°C – engine components

-TA2/TA3 (CP titanium): Lower strength but excellent corrosion resistance – forged flanges for chemical service

Forging seems like an “old‑school” process – isn’t it just blacksmithing? But with titanium, each precisely aimed hammer blow delivers a complete internal rebirth. You can’t tell whether a part is forged just by looking at its surface. But its fatigue life, inspection grade, and long‑term reliability are hidden in those invisible grain flow lines. Next time you see an aircraft land smoothly, a race car bang off the rev limiter, or a hip joint prosthesis carry someone through a decade of walking – remember: those critical parts were probably a titanium billet that “took a beating” under thousands of tons of pressure before becoming what they are today.
