Dental Titanium Discs: The Starting Point of an Artificial Tooth

       If you walk into a high-end dental processing facility, you might see technicians carefully removing a silver-gray disc from its packaging — about 98 mm in diameter, ranging in thickness from just over ten to over thirty millimeters, with a fine metallic sheen on its surface. This disc is called a medical-grade dental titanium disc.

The root, the abutment, or even an entire dental bridge in your mouth was very likely "born" from such a disc. But before becoming an artificial tooth, this small disc must first undergo a rigorous selection process — one defined by materials science.

1. Not just any titanium can go into your mouth

Titanium used in dentistry and titanium used in aerospace — both are titanium alloys, but their standards are completely different. Aerospace titanium can tolerate trace impurities as long as mechanical properties are not compromised. Dental titanium cannot.

It must enter the human oral cavity, coming into long-term contact with gums, jawbone, and even blood.

Therefore, it must meet three stringent requirements:

1. Biocompatibility – It must not release toxic ions or cause allergic reactions. Hence, the chemical composition of dental titanium is strictly limited to Grade 4 commercially pure titanium or Ti-6Al-4V ELI (Extra Low Interstitial). ELI means impurities such as oxygen, nitrogen, carbon, and iron are kept at extremely low levels, ensuring the material's purity.

2. Non-magnetic – Magnetic materials in the mouth can interfere with MRI examinations. Titanium itself is non-magnetic, but certain impurities or improper processing could introduce magnetic domains. Therefore, the raw material for the disc must undergo rigorous screening.

3. Traceability – Every dental titanium disc comes with a "birth certificate" — a material certificate detailing the heat number, chemical composition, mechanical properties, and heat treatment process. Once implanted into the human body, this chain must be traceable all the way back to the ore source.

2. The "life story" of a titanium disc

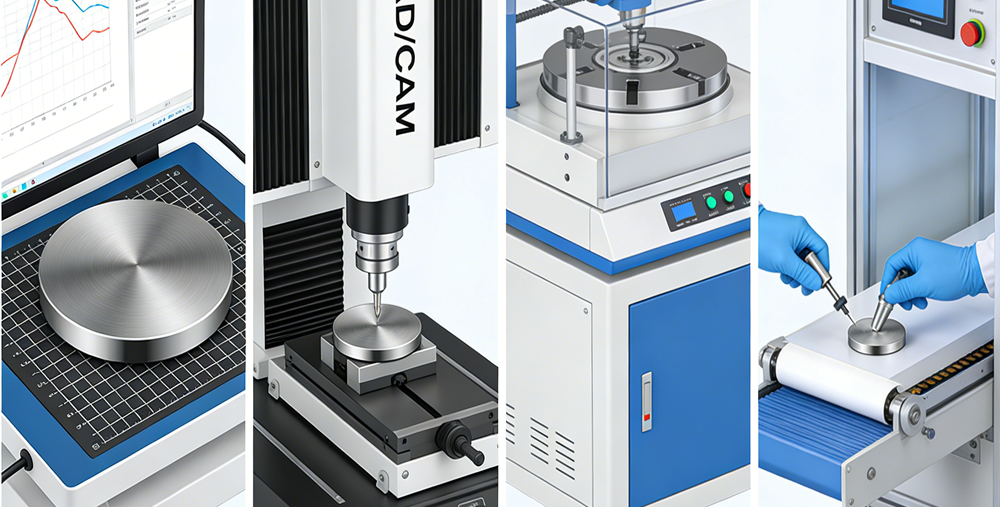

How does a 98 mm diameter titanium disc become the dental implant in your mouth?

Step 1: CAD/CAM Design
A dentist scans your mouth to obtain your jawbone data. Engineers then create 3D models of the implant, abutment, and crown. These models are "nested" onto a virtual titanium disc — much like a tailor arranging pattern pieces on fabric — to minimize material waste.

Step 2: CNC Machining
The disc is loaded into a 5-axis CNC machine. A micro end mill as small as 0.3 mm in diameter spins at tens of thousands of RPM, carving the implant threads, abutment taper, and even surface micropores into the titanium disc. The entire process can take anywhere from tens of minutes to several hours, depending on the complexity of the geometry.

Step 3: Surface Treatment
After machining, the titanium components undergo a series of "cosmetic" procedures:

• Sandblasting + acid etching – Creates a microscopically rough surface that encourages bone cells to attach — this is key to achieving osseointegration.

• Anodization – By controlling voltage, oxide layers of varying thicknesses are formed on the surface. This not only enhances corrosion resistance but can also produce colors such as gold, blue, and purple, making it easier for surgeons to distinguish different abutment types during procedures.

Step 4: Sterilization and Packaging
All finished products are ultrasonically cleaned, autoclaved, and sealed in sterile packaging before being shipped to clinics.

From disc to finished product, the entire process may take less than 24 hours — that is the efficiency of digital dentistry.

3. The "materials economics" behind the disc

You may not realize it, but the utilization rate of a dental titanium disc directly determines the cost of a dental implant.

A 98×25 mm disc may cost a few hundred yuan in raw materials. But if the nesting arrangement is poor, only 30% of the material may be used, with the remaining 70% turned into titanium chips. That is why good processing plants maximize disc utilization through:

• Nesting – Arranging dozens of implants and abutments on a single disc like a jigsaw puzzle.

• Multi-axis machining – Using more flexible tool paths to reduce waste caused by tool interference.

• Residual material recycling – Leftover disc material (typically a disc full of holes) can be remelted — but strict purity control is essential to avoid contamination.

Another interesting economic factor: the thickness of the disc determines what you can produce.

• Under 15 mm – Suitable for abutments, crowns, and veneers.

• 20–25 mm – Suitable for standard-length implants (10–15 mm).

• Over 30 mm – Suitable for long implants, bridge frameworks, and even full-arch semi‑fixed restorations.

So a thicker disc is essentially a piece of "premium raw material" — it gives engineers more design freedom.

4. The competitors of titanium discs

Titanium is not without rivals in dentistry. In recent years, the following materials have challenged its dominance:

• Zirconia (ceramic) – White, non-metallic, excellent biocompatibility, and ideal for crowns and abutments in aesthetic zones. However, it is more brittle than titanium, harder to machine, and cannot achieve the same level of osseointegration strength.

• PEEK (polyether ether ketone) – A high-performance plastic with an elastic modulus close to bone, suitable for temporary restorations or implant superstructures. But its strength is far lower than titanium, making it unsuitable for long-term load‑bearing applications.

Currently, the mainstream approach is a "best of both worlds" combination: titanium for the implant (providing mechanical strength), and zirconia for the abutment and crown (providing aesthetics). And the titanium disc is where this "strength partner" begins its journey.

5. From disc to dental implant: a six‑month wait

You might be surprised to learn that an implant machined from a titanium disc — from "manufacturing completion" to actually serving in the mouth — can take months or even longer.

This is because implant surgery follows a staged protocol:

1. First-stage surgery – The titanium implant is placed into the jawbone, then sutured and left for 3–6 months to allow osseointegration.

2. Second-stage surgery – The top of the implant is exposed, and the abutment is placed.

3. Restorative phase – Impressions are taken, the crown is fabricated, and the final tooth is placed.

The small titanium disc — selected, machined, implanted, and eventually supporting a single artificial tooth — spans multiple fields: materials science, precision manufacturing, surgery, and restorative dentistry. It never speaks, yet it silently endures decades of chewing force inside your mouth.

A dental implant looks like just an artificial tooth. But behind it lies a carefully selected titanium disc, a 5-axis machine that runs for hours, an engineer who designs the nesting, a surgeon who places it precisely, and months of patient waiting.The story of the dental titanium disc reminds us that progress in modern medicine often does not come from earth-shattering breakthroughs, but from excellence in every single step — from ore purity, to machining precision, to the angle of placement. Each detail determines the final success.The next time you hear the words "dental implant," perhaps you will think of that unremarkable silver-gray disc. Quietly sitting on a processing plant's shelf, waiting to be chosen, waiting to be carved, waiting to become something in your mouth that feels "just like a real tooth."
